1,2&3 Needle Long Arm Compound Feed and Walking Foot Lockstitch Sewing Machines

  • GA20698 Series

  • KINGMAX

  • One&Two&Three Needle

  • Compound feed with the walking foot

  • 1800

Availability:

Product Descriptions

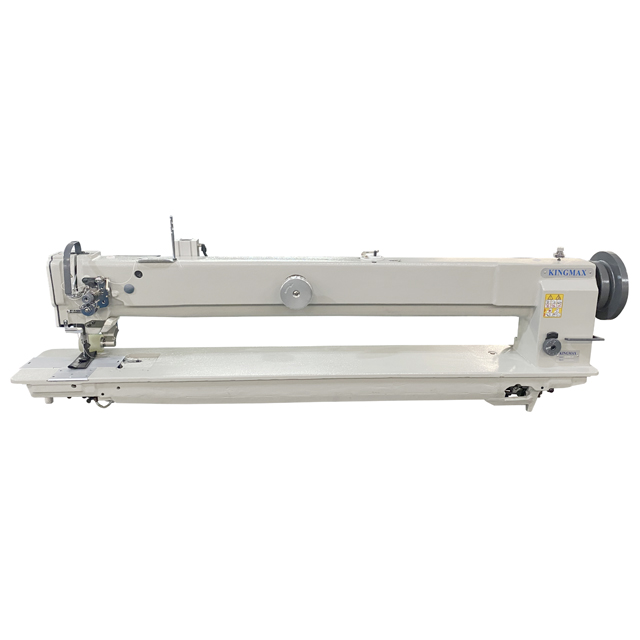

1,2&3 Needle Long Arm Compound Feed and Walking Foot  Lockstitch Sewing Machines GA20698

This series machines are high speed 1,2 and 3 needle, long arm, compound feed and walking foot lockstitch sewing machines. With the basic same character of regular GC20618 series machine, variety subclasses models available as the option.18, 25, 30 and 40 inch long arm with direct-driven or without, auto thread trimmer, air foot lift and reverse can be added as the standard device, 1,2 and 3 needle version machines, even with the rear puller depends on the different requests. These series machines are mainly designed for the sewing of large size workpieces, such as tents, truck covers, bamboo mat, parachute, paraglider, car seats, safety straps and more.


Features

 1,2&3 Needle Long Arm Compound Feed and Walking Foot Lockstitch Sewing Machines GA20698

  • 18, 25, 30 and 40 inch long arm, even other size can be customized

  • 1, 2 and 3 needle version machines separately

  • Both mechanical and direct-driven machines available

  • Full function with auto thread trimmer, air foot lift and reverse can be added

  • Variety subclass machines for the multi different application


Specifications

Model

GC20698-1L25

GC20698-2L25

GC20698-1L40

GC20698-2L40

GC20698-3L40

Number of Needle

1-needle

2-needle

1-needle

2-needle

3-needle

Max.sewing Speed

1800 SPM

1600 SPM

1200 SPM

Max.stitch Length

9mm

Max.foot Lift

16mm

Hook

Double capacity   vertical axis hook

Safety Clutch

Yes

Needle Gauge

2-needle   version machine: 6.4,7.9,9.5mm etc.

GC20698-3L40:   12.7-12.70mm

Needle(standard)

DPx17, 19-23#

Working Space

635x100mm

1016x100mm


Product Details

1,2&3 Needle Long Arm Compound Feed and Walking Foot Lockstitch Sewing Machines GA20698Long Arm Compound Feed and Walking Foot
