1 & 2 Needle 18 Inch Long Arm Flat Bed Trip Feed with Walking Foot Sewing Machine

GC1510L-18H 1-needle 18 inch long arm flat bed walking foot sewing machine
GC1560L-18H 2-needle 18 inch long arm flat bed walking foot sewing machine

  • GC1510L/1560L-18H

  • KINGMAX

  • 1&2 Needle

  • Compound feed with walking foot

  • 2000SPM

Availability:

Product Descriptions

1 & 2 needle 18 inch long arm flat bed triple feed with walking foot sewing machine GC1510/5760L-18H are developed from the regular 18 inch long arm GC1500 series, but with the higher working space 150mm under the sewing arm, this means the working space of these two machines is 457x150mm, which is easier for the free movement of the larger workpieces as we know.


1-needle 18 inch long arm flat bed walking foot sewing machine GC1510L-18H and 2-needle 18 inch long arm flat bed walking foot sewing machine are two subclass models under this series machines. Both of these two long arm machines come with the pneumatic foot lift as the standard kit, and we can add the pneumatic reverse too as per the customized order. All others characters are same as the regular GC1510/1560L-18 series.


Mainly suitable for sewing medium to heavy weight materials, such as car mats, seats and more, we also can add the tape guide and side roller guide for more precisions stiches.As the professional manufacturer of long arm walking foot sewing machine, we also have 25 and 30 inch longer arm machines for this series.


Features

  • High speed 18 inch long arm triple feed industrial sewing machines.

  • 150mm higher working space under the sewing arm.

  • Two needle version machine can be interchanged to 1-needle version.

  • The max.foot lift by knee can up to 16mm.

  • The tape guide and side material guide GB-6 can be added easily.


Specifications

Model

GC1510L-18H

GC1560L-18H

Number of Needle

1-needle

2-needle

Max.Sewing Speed

2000SPM

Max.Stitch Length

9mm

Max.Lift of the Presser Foot

16mm

Hook

Double   capacity vertical axis hook

Safety Clutch

Yes

Needle Gauge

None

6.4,   7.9, 9.5, 12.70mm

Needle(Standard)

DPx17,   19-23#

Working Space

457x100mm


Product Details

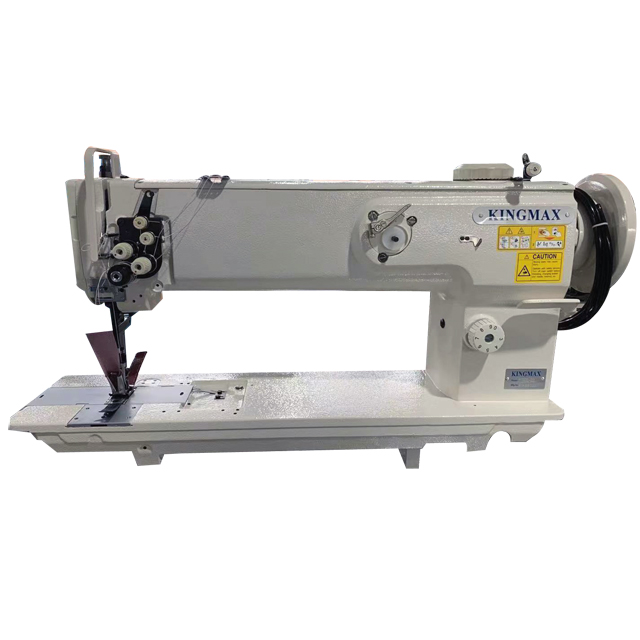

1-needle 18 inch long arm flat bed walking foot sewing machine
