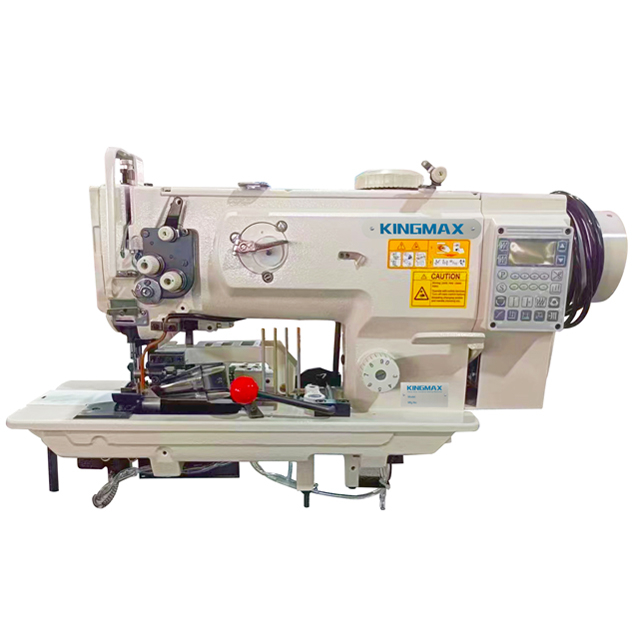

1-needle Edge Trimming and Binding Lockstitch Sewing Machine

  • GC1508D-AE

  • KINGMAX

  • 1 Needle

  • Compound feed with walking foot

  • 2000SPM

Availability:

Product Descriptions

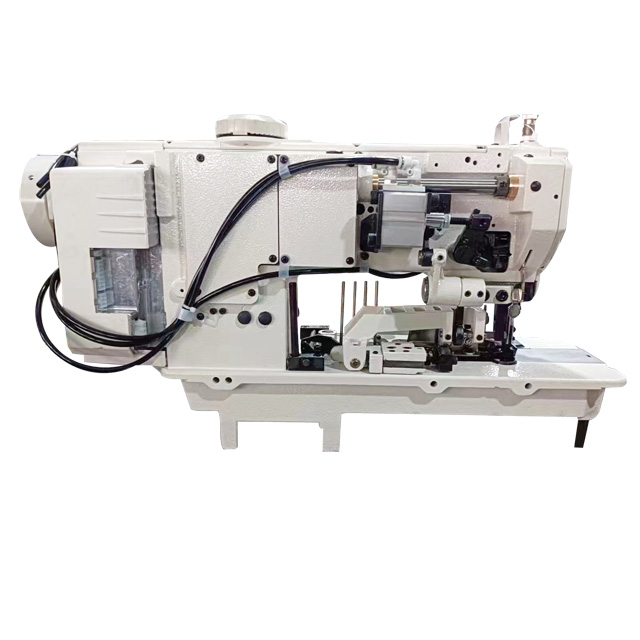

Direct-driven edge trimming and binding sewing machine GC1508D-AE is developed from our regular GC1508-AE machine, but with the integrated direct-driven control, mini strong servo needle position motor(top and bottom needle position) and easy operated panel.

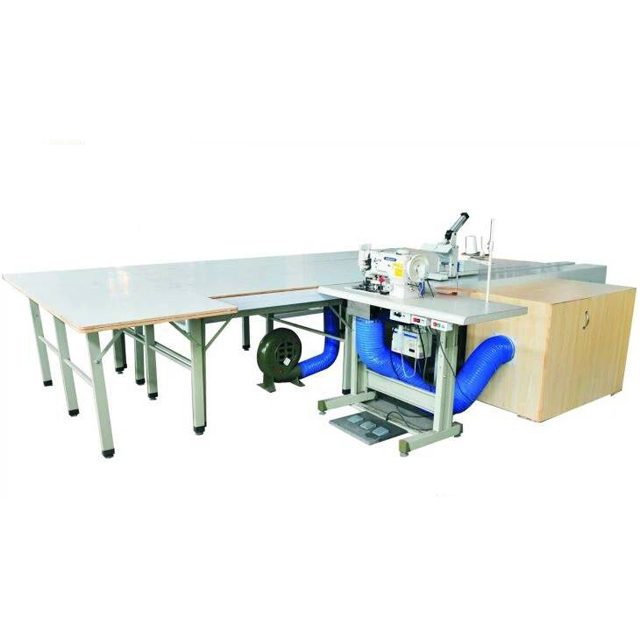

This high speed 1-needle edge trimming and binding lockstitch sewing machine has the same characteristics and excellent performance as our common GC1508-AE machine, it uses the high quality cutting blade to trim the material edge consistently and bind it simultaneously by tape with the binding attachment(the binder size depends on the tape width), this direct-driven version machine can raise the production significantly, the puller device with the long guide available as the automatic unit.


GC1508D-AEedge trimming and binding sewing machineis one automatic sewing unit for trimming and binding application in the bedding industry. Very good choice for all manufacturers of pillow, cushion, bolster, bedding and more.


Features

  • Direct-driver version with strong mini servo motor

  • Large vertical axis hook and large bobbin

  • The safety clutch by button prevents the hook damage

  • The synchronized puller and guide unit available

  •  Ideal automatic sewing unit for the cushion and pillow factory worldwide


Specifications

Model

GC1508D-AE

GC1508D-AEL

Number of Needle

1   needle

Max.Sewing Speed

2000SPM

Max.Stitch Length

9mm

Max.Lift of the Presser Foot

16mm

Hook

Double   capacity vertical axis hook

Safety Clutch

Yes

Overedge Width

12mm

22.50mm

Working Space

255x100mm

355x120mm

Needle

DPx17,   19-23#


Product Details

Direct-driven edge trimming and binding sewing machine GC1508AE
