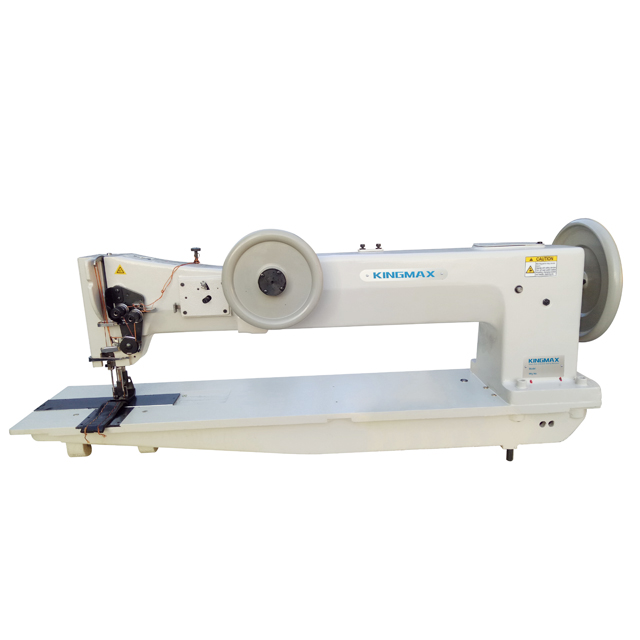

30 Inch Long Arm Sewing Machine GA-8&28BL-30

GA-8BL-30    1-needle, 30" long arm, industrial sewing machine
GA-28BL-30  2-needle, 30" long arm, industrial sewing machine
  • GA-8&28BL-30
  • KINGMAX
  • One&Two Needle
  • Compound feed with the walking foot
  • 1200&1500
Availability:

Product Descriptions

30 Inch Long Arm Sewing Machine GA-8&28BL-30 Descriptions

These two machines are high speed, 1 & 2 needle, long arm, 30 inch long arm, compound feed with walking foot, flat bed, extra heavy duty industrial lockstitch sewing machines with the thick thread. GA-8BL-30 is the single needle triple feed sewing machine, GA-28BL-30 is the double needle industrial sewing machine. Both of them have the extra large vertical axis rotary hook and large bobbin, automatic hook lubrication, built-in bobbin winder, front handwheel for the easy needle position movement, belt transmission, safety clutch by button prevents the hook damage during the sewing, the compound feed with walking foot assures the machine stitch the multi-layers materials smoothly and stably, consistent and perfect seam, large working space under the arm for the sizeable workpieces. The synchronized rear puller, air foot lift and back tacking as the option. Suitable for sewing heavy duty to extra heavy weight materials with the thick thread, such products as tents, parachutes, truck covers, furniture upholstery, cargo slings, safety belts, canvas, vinyl, bags etc.

Features

30 Inch Long Arm Sewing Machine GA-8&28BL-30 Features

  • 30 inch long arm extra heavy duty sewing machines with thick thread.

  • Extra large axis rotary hook and large bobbin.

  • Large working space under the arm.

  • The synchronized rear puller, air foot lift and back tacking as the option.

  • Very good walking foot sewing machines for the canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabric.

Specifications

30 Inch Long Arm Sewing Machine GA-8&28BL-30 Specifications

Model

GA-8BL-30

GA-28BL-30

Number of Needle

1-needle

2-needle

Max.Sewing Speed

1500SPM

1200SPM

Max.Stitch Length

10mm

Max.Lift of the Presser Foot

24mm

Working Space

762x153mm

Hook

Extra large vertical axis rotary hook

Needle Gauge

None

6.4, 7.9, 9.5, 12.70, 25.40mm

Needle(Standard)

DYx3


Product Details

30 Inch Long Arm Sewing Machine GA-8&28BL-30 Details

compound feed with walking foot industrial sewing machine - KINGMAX
