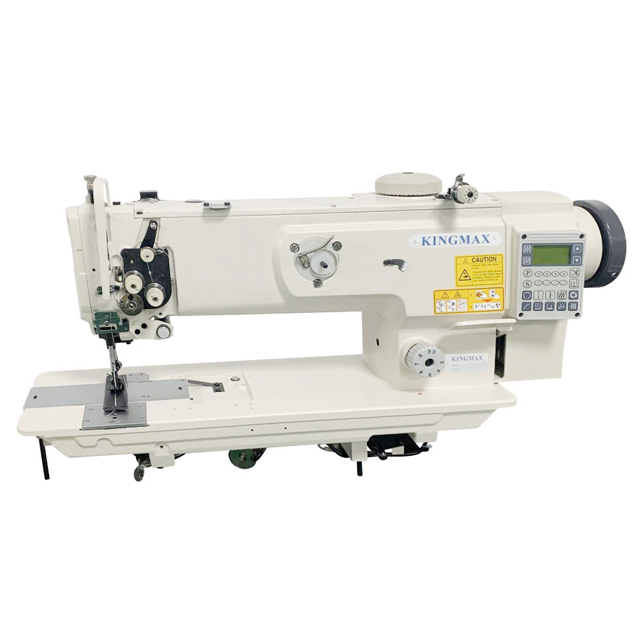

Auto Thread Sewing Machine GC1500DL-14 Series

GC1510DL-14     1-needle,14" long arm, direct drive, industrial sewing
                            machine
GC1510DL-14-7   1-needle,14" long arm, direct drive, thread trimmer
GC1560DL-14     2-needle, 14" long arm, direct drive, industrial sewing
                            machine
GC1560DL-14-7   2-needle, 14" long arm, direct drive, thread trimmer
  • GC1500DL-14 Series

  • KINGMAX

  • One&Two Needle

  • Compound feed with the walking foot

  • 2500

Availability:

Product Descriptions

Auto Thread Sewing Machine GC1500DL-14 Series Descriptions

This series machines are high speed, single & two needle, 14 inch long arm, direct drive, compound feed with walking foot, flat bed sewing machines. Both GC1510DL-14 and GC1560DL-14 are direct drive industrial sewing machines with the upper and lower needle position, GC1510DL-14-7 and GC1560DL-14-7 are the direct drive automatic thread trimming sewing machine, which have the automatic thread trimmer, air foot lift and air back tacking. All of them use the mini direct drive servo motor, strong power, low noise and vibration, the double-capacity vertical axis rotary hook and large bobbin, the rectangular feeding motion prevents stitch gathering, the alternative vertical movement mechanism, controlled by the top dial, prevents the irregular and consistent stitches, dual tension mechanism, built-in bobbin winder, safety clutch by button prevents the hook damage during the sewing, large working space under the arm. The synchronized puller as the option. Suitable for sewing medium to heavy weight materials, such as automobile upholstery (car mats etc), tents, bags, sofa, tarpaulins as well as other leather products etc.


Features

Auto Thread Sewing Machine GC1500DL-14 Series Features

  • High speed, 1& 2 needle, direct drive, 14 inch long arm, industrial sewing machines.

  • Large horizontal axis hook and large bobbin.

  • The safety clutch by button prevents hook damage.

  • The air foot lift, air back tacking and the synchronized puller as the option.

  • Very popular medium to heavy weight long arm leather sewing machines.

Specifications

Auto Thread Sewing Machine GC1500DL-14 Series Specifications

Model

GC1510DL-14

GC1510DL-14-7

GC1560DL-14

GC1560DL-14-7

Number of Needle

1 needle

2-needle

Max.Sewing Speed

2500SPM

Max.Stitch Length

9mm

9mm

9mm

9mm

Max.Lift of the Presser Foot

16mm

Hook

Double capacity horizontal axis hook

Safety Clutch

Yes

Needle Gauge

none

6.4, 7.9 , 9.5, 12.7 mm

Working Space

355x100mm

Needle (Standard)

DPx17, 19-23#


Product Details

Auto Thread Sewing Machine GC1500DL-14 Series Details

industrial double needle sewing machine - KINGMAX
