High Speed 1&2 Needle Triple Feed and Walking Foot with Auto Thread Trimmer Lockstitch Sewing Machine

GC1510-7  1-needle, industrial sewing machine with the thread trimmer
GC1560-7  2-needle, industrial sewing machine with the thread trimmer
  • GC1510&1560-7 Series

  • KINGMAX

  • One&Two Needle

  • Compound Feed with Autio Thread Sewing Machine

  • 2500

Availability:

Product Descriptions

Auto Trimming Sewing Machine GC1510&1560-7 Series Descriptions

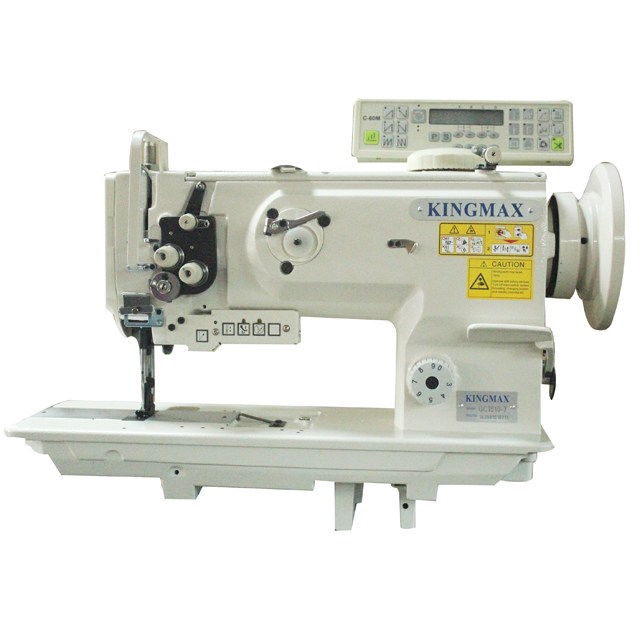

These two machines are high speed, single & two needle, compound feed with walking foot, flat bed sewing machine. GC1510-7 is the single needle automatic thread trimming sewing machine, GC1560-7 is the double needle automatic thread trimming sewing machine. Both of them have the automatic thread trimmer, air foot lift and air back tacking, the strong H.S. servo motor with the top panel, the double-capacity vertical axis rotary hook and large bobbin, the rectangular feeding motion prevents stitch gathering, the alternative vertical movement mechanism, controlled by the top dial, prevents the irregular and consistent stitches, dual tension mechanism, built-in bobbin winder, safety clutch by button prevents the hook damage during the sewing. The synchronized puller as the option. Suitable for sewing medium to heavy weight materials, such as automobile upholstery (car mats etc), tents, bags, sofa, tarpaulins as well as other leather products etc.

Features

Auto Trimming Sewing Machine GC1510&1560-7 Series Features

  • High speed, 1-needle, automatic thread trimming industrial sewing machine.

  • Large vertical axis hook and large bobbin.

  • The safety clutch by button prevents hook damage.

  • The synchronized puller as the option.

  • Very popular medium to heavy weight compound feed with walking foot, automatic thread trimming sewing machines for the car upholstery factory.

Specifications

Auto Trimming Sewing Machine GC1510&1560-7 Series Specifications

Model

GC1510-7

GC1560-7

Number of Needle

1 needle

2-needle

Max.Sewing Speed

2500SPM

Max.Stitch Length

9mm

Max.Lift of the Presser Foot

16mm

Hook

Double capacity vertical axis hook

Safety Clutch

Yes

Needle Gauge

none

6.4, 7.9, 9.5mm

Needle(Standard)

DPx17, 19-23#


Product Details

Auto Trimming Sewing Machine GC1510&1560-7 Series Details

auto thread sewing machine - KINGMAX
