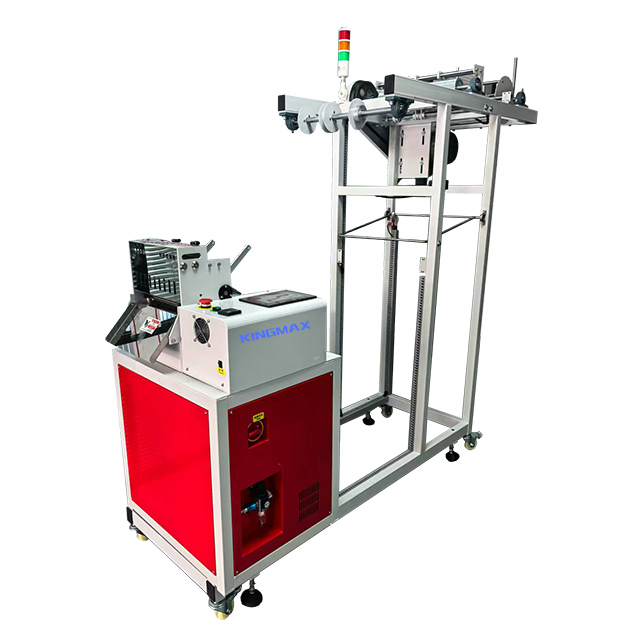

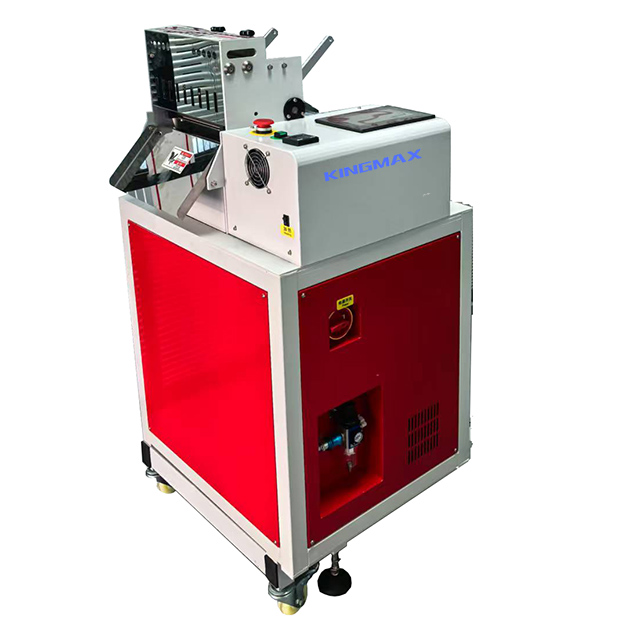

Automatic Webbing Slings Cutting Machine with the Hot Knife

  • GT-818/819

  • KINGMAX

Availability:

Product Descriptions

This series machines are high speed hot knife automatic webbing slings cutting machines with two different max. cutting widths(GT-818 can up to 200mm cutting width, GT-819 can up to 300mm cutting width),both of them can cut the slings with the max. thickness 16mm and ropes with the max. diameter 16mm. The machine comes with the top and bottom HSS blades at the adjusted temperature to melt and seal the end of webbing, slings, ropes and lanyard etc, the cutting length is set by the built-in touch panel automatically. Especially, this machine can be set to mark the dot on webbing and slings before sewing(special order). Both of these two machines are very professional automatic webbing slings cutting machines for the manufactures of cargo slings, lifting straps, crane slings, safety lanyard, climbing ropes, industrial lifting belts and more. High performance & Labor Cost-saving!

Features

  • High speed hot knife webbing slings cutter

  • Large cutting widths up to 200&300mm separately

  • The different cutting length is set by the touchable panel

  • Its cutting temperature can be adjusted by the PLC

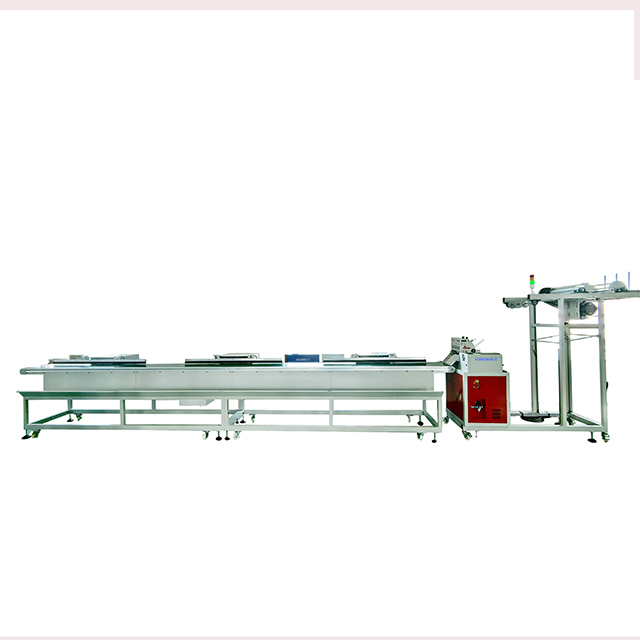

  • Both the feeding roll device and conveyors as the option


Specifications

Model

GT-818

GT-819

Max. Cutting Width

200mm

300mm

Max. Cutting Thickness

16mm

Cutting Tolerance

+2mm/-2mm

Quantity of the Blade

2 blades (top and   bottom)

Blade-Driven Method

Pneumatic lift and   down

Blade Material

High speed steel

Max.Blade Temperature

600 C

Air Pressure

0.4-0.6 Mpa

Power

200-240V, 5060HZ


Product Details

details
