Product Descriptions

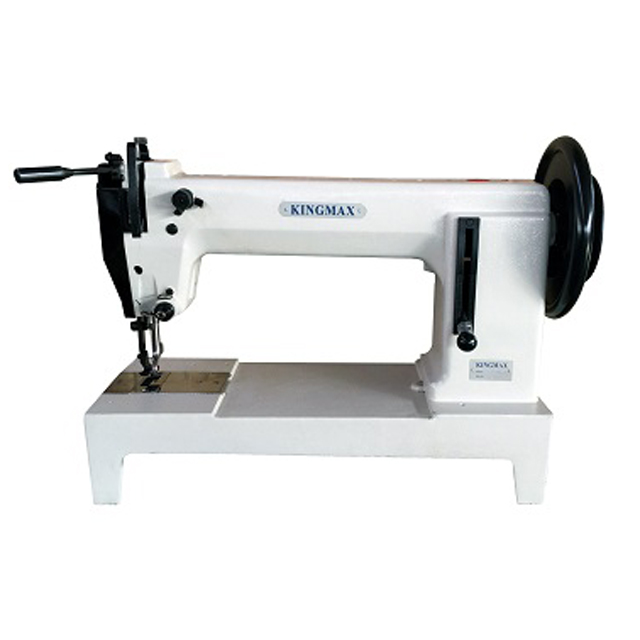

GA9800 big bag sewing machine with thick thread is one heavy duty, large barrel shuttle hook, top and bottom feed, flat-bed industrial jumbo bag sewing machine. The powerful top and bottom feeding mechanism ensures machines stitch the flexible materials smoothly, 58mm needle bar stroke, the alternative presser feet, the ball type reverse lever, the large bobbin assures the bottom thread supply, the max. foot lift can up to 20mm, and the max. stich length is 14mm. This FIBC sewing machine is special designed for big bags, FIBC bags, ton bags, jumbo bags with the thick thread. It also suitable for sewing heavy duty and extra heavy duty materials, such as products, like tents, slings, safety belts etc.
Features
1-needle, flat-bed, big bag making machine.
The max. length can up to 14mm.
The 20mm high foot lift.
Large barrel shuttle hook with the thick thread.
Simple set up and easy maintenance.
Specifications
Model | GA9800 |
Number of Needle | One needle |
Feeding Structure | Upper and lower feed |
Max.Sewing Speed | 1000SPM |
Max.Stitch Length | 14mm |
Max.Sewing Thickness | 20mm |
Needle Bar Stroke | 58mm |
Needle(Standard) | 7x230/250/300 |
Hook | Large barrel shuttle hook |
