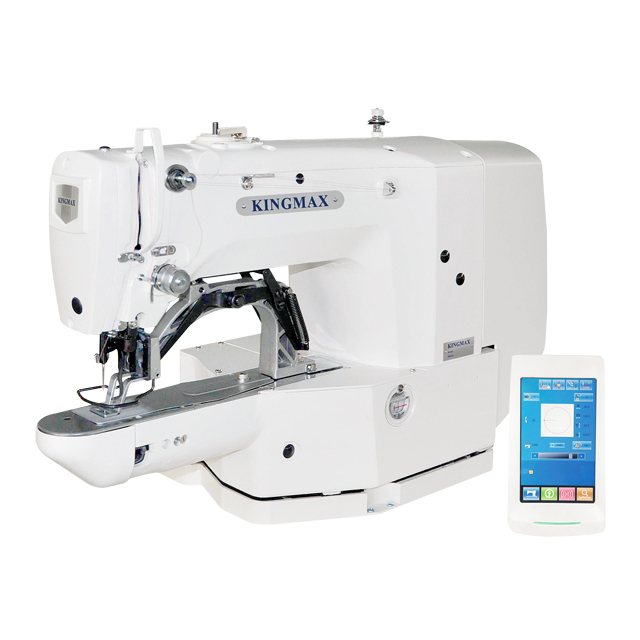

Computer Controlled Bartacking Machine GT1900 Series

GT1900A      Regular bartacking machine
GT1900AH   Heavy duty bartacking machine
GT1900BH   Large hook bartacking machine
  • GT1900 Series

  • KINGMAX

  • Single Needle

  • 3000

Availability:

Product Descriptions

Computer Controlled Bartacking Machine GT1900 Series Descriptions

This series machines are the high speed, direct-drive, computer-controlled, bartacking sewing machine. It's max speed up to 3000SPM at the low noise, semi-dry machine head, the standard electronic tension device(manual tension device as the option), auto thread trimming with auto foot lift, large sewing area(40x30mm) under the arm, large hook version machines available, and the touchable panel(IP version) with the input function and USB port as the option. Suitable for box bartacking(reinforced stitch)on the medium and heavy weight materials, such as jeans, webbing, slings, leather labels etc.

Features

Computer Controlled Bartacking Machine GT1900 Series Features

  • 1-needle,high speed, electronic lockstitch bartacking sewing machine.

  • Automatic thread trimmer with the auto foot lift.

  • The standard electronic thread tension device(manual thread tension device as the option).

  • Large hook version machine available, and the touchable panel as the option.

  • One universal and electronic bartacking machine for the most bartacking demands.

Specifications

Computer Controlled Bartacking Machine GT1900 Series Specifications

Model

GT1900A

GT1900AH

GT1900BH

Number of Needle

1-needle

Needle Bar Stroke

41.20mm

Max.Sewing Speed

3000SPM

Max.Lift of the Working Clamp

17mm

Application

Standard

Heavy duty

Heavy duty with large hook

Sewing Area

40x30mm

Numbers of the Standard Patterns

50

Hook

The standard shuttle hook

Large shuttle hook

Needle(Standard)

DPx5(14-21#)


Product Details

Computer Controlled Bartacking Machine GT1900 Series Details

bartacking machine-KINGMAX
