Computerized Shoes Ornamental Sewing Machine

  • GB7-810E

  • KINGMAX

  • One&Two Needle

  • Compound feed with the walking foot

  • 400SPM

Availability:

Product Descriptions

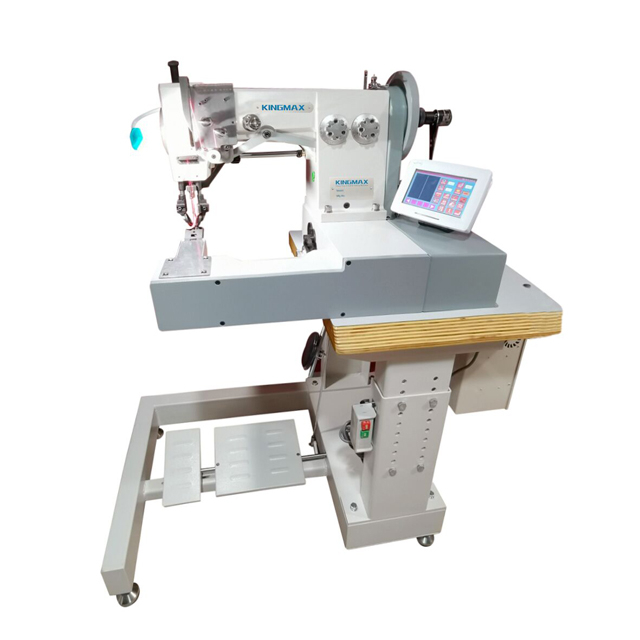

Computerized shoes ornamental sewing machine

Computerized shoes ornamental sewing machine GB7-810E is one automatic 2-needle feed-off-arm sewing machine with the electronic control and touchable panel to realize 50 different patterns(even more can be edited by the touchable panel), the transported can be carried out by the right and left feed dog, which can be adjusted separately. As per the different setting of the feed dog, the ruffling function can be realized, even the ruffling amount can be changed during the sewing. The two stitches lengths can be adjusted by two stitch dials in the front, the locking device for the enforced stitch at the beginning and end of sewing machine is available as the option.


This GB7-810E computerized shoes ornamental sewing machine is developed from our regular GB7-810,which mainly designed for the tubular open and closed moccasin sewing on shoes, footwear as well as other decorative sewing machine on other leather products. It is one high level automatic decorative sewing machines for shoes and footwear manufacturers.


Features

  •  Feed-off-arm decorative sewing machines.

  • Computerized sewing machine with the touchable panel.

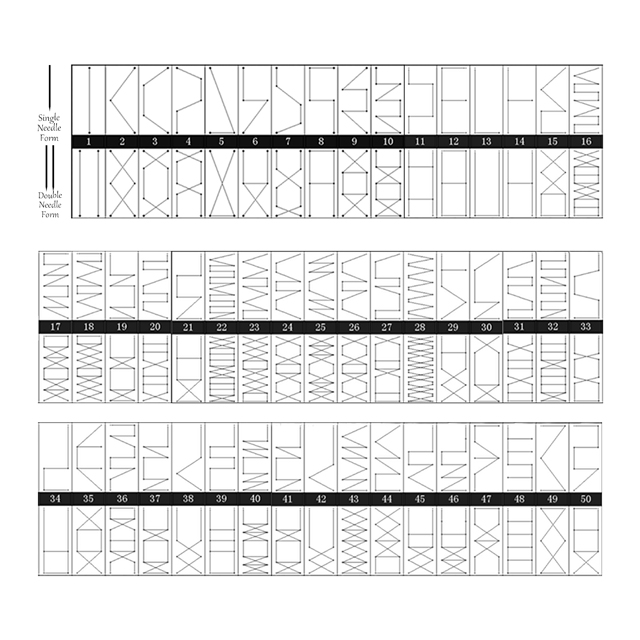

  • 50 standard patterns even more can be edited.

  •  The strong needle position servo motor with the auto foot lifter.

  • The locking device for the enforcement stitch at the beginning and end as the option.


Specifications

Model

GB7-810E

Number of Needle

2  needle(standard gauge:6mm)

Patterns

50

Max.Sewing Speed

400SPM

Max.Stitch Length

10mm

Max.Lift of the Presser Foot

14mm

Needle(standard)

DDx1


Product Details

Computerized shoes ornamental sewing machine details
