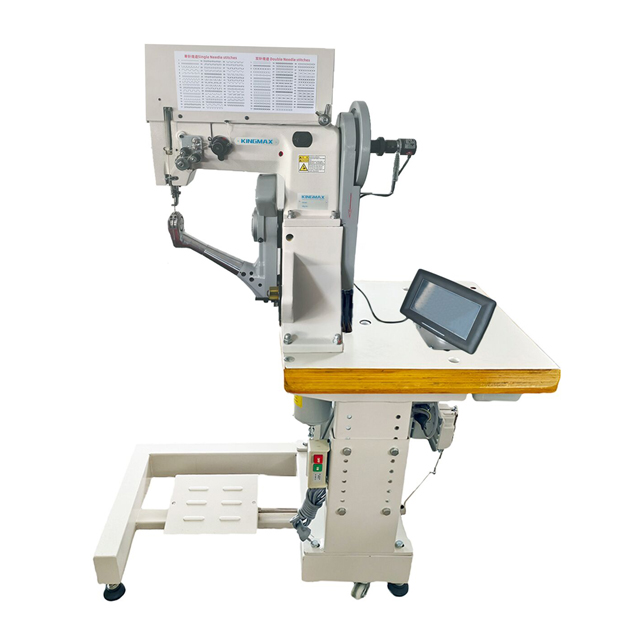

Computerized Shoes Side Seam Pattern Sewing Machine

  • GB4-810E

  • KINGMAX

  • 1 & 2 needle

  • 200SPM

Availability:

Product Descriptions

Computerized shoes side seam pattern sewing machine GB4-810E is developed from our regular GB4-810 double thread shoes side seam sewing machine. It is one high level machine for the globe shoes manufacturers who need the decorative stitches for shoes side seam in the shoes factory.


With the touchable panel, this automatic shoes side seam sewing machine uses the strong needle position servo motor with the auto foot lifter, the light sewing arm move freely, which can reduce the operator’s fatigue obviously, the built-in lubricated system can product the sewing horn well during the sewing, its split feeding structure avoid the machine damage when the machine jammed with threads.


As the professional shoes machines manufacturer, this double thread shoes side seam sewing machine is one high level automatic footwear sewing machines we developed for the shoes industry worldwide. With basic 100 patterns(1-needle: 50 patterns, 2-needel: 50 patterns), this machine can meet almost all ornamental stitching one shoes side seam even more.


Features

  • Electronic pattern sewing machine for shoes side seam stitching

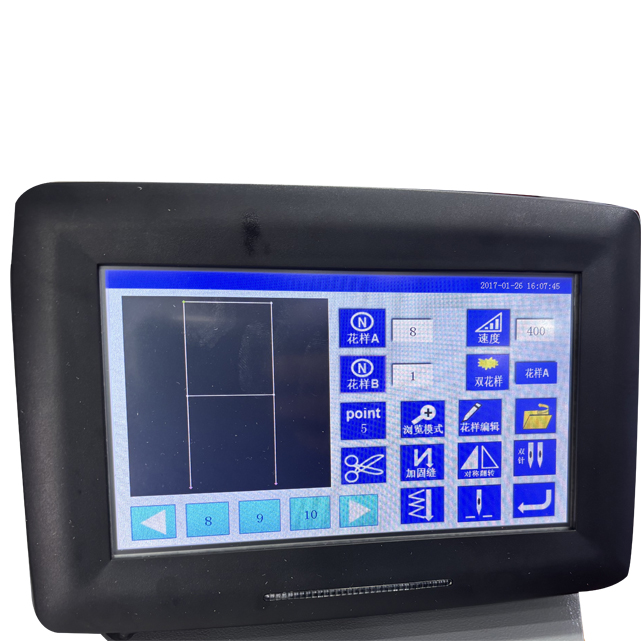

  • The touchable panel with the fast and simple operation

  • 100 patterns available(1-needle: 50 patterns, 2-needle: 50 patterns)

  • Strong servo motor with the needle position and auto foot lifter

  • The high level ornamental footwear & shoes sewing machine


Specifications

Model

GB4-810E

Number of Needle

1   & 2 needle

Max.Sewing Speed

200SPM

Max.Stitch Length

3-13mm

Max.Lift of the Presser Foot

6mm

Bobbin Diameter&Thickness

26mm   & 11mm

Needle(Standard)

DPx5


Product Details

Automatic shoes side seam sewing machine
