GA441 Series
KINGMAX
One Needle
Compound feed with the walking foot
800
Availability: | |
---|---|
Product Descriptions

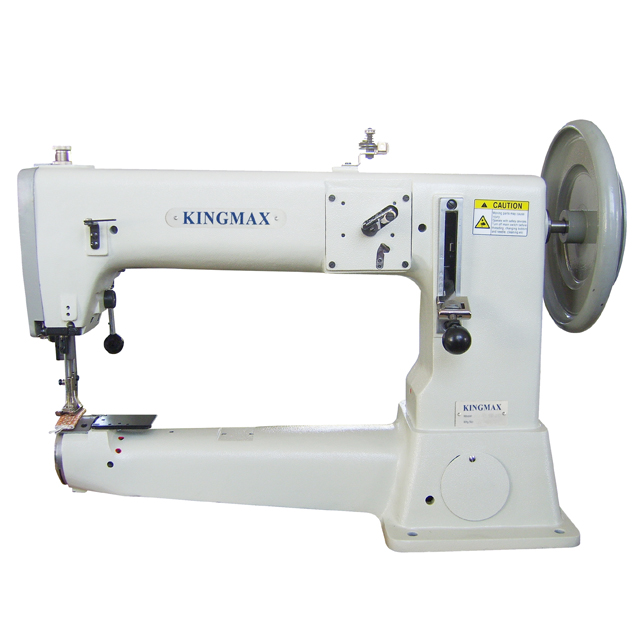

These two machines are single needle, heavy duty and extra heavy duty, cylinder bed sewing machines with thick thread. GA441 is the compound feed with walking foot, cylinder bed sewing machine, GA471 is only top and bottom feed, cylinder bed sewing machine. Both of them have the large barrel shuttle hook and large bobbin, the powerful feeding structure assures the consistent smooth seam quality, even on the multi-layers materials, built-in bobbin winder, long stitch length, large needle bar stroke, high foot lift.8 different special feet based on the regular feet available, roller guide, larger hand wheel and the special speed reducer available as the option, as well as the air foot lift and back tack as the option. Suitable for sewing heavy duty and extra heavy duty materials with the thick thread, such saddlery, harness, sofa, webbing and more. GA441 is one ideal saddlery and harness sewing machine.
Features
16.5 inch arm length
Large barrel shuttle hook and large bobbin
Thick thread cylinder bed sewing machine
High foot lift and long stitch length.
Very good and popular cylinder bed machines for the saddlery and harness manufacturers
Specifications
Model | GA441 | GA471 |
Number of Needle | 1 needle | |
Max.Sewing Speed | 800SPM | |
Feeding Structure | Compound feed and walking foot | Top and bottom feed |
Max.Stitch Length | 11mm | |
Max.Lift of the Presser Foot | 23mm | |
Hook | Large barrel shuttle hook | |
Lubrication System | Manual | |
Needle | DYx3 |
