Direct Drive Industrial Sewing Machine GC0303DL-7

GC0303DL-7  1-needle, direct drive, top and bottom feed with auto
                       thread trimmer
  • GC0303DL-7

  • KINGMAX

  • One Needle

  • Top and Bottom Feed

  • 2500

Availability:

Product Descriptions

Direct Drive Industrial Sewing Machine GC0303DL-7 Descriptions

This is one high speed, direct drive, single needle, long arm, top and bottom feed, flat bed. Industrial lockstitch sewing machine, which has the automatic thread trimmer, automatic foot lift and back tack. It is one direct drive top and bottom sewing machine. It has the strong direct drive control system with the powerful mini direct-driven servo motor, double capacity horizontal axis rotary hook and large bobbin, the built-in touchable LED panel for the simple and fast operation, top built-in bobbin winder, front the reverse lever, electronic thread tension and back tack button, the powerful top and bottom feed mechanism assure the machine stitch the multi-layers materials smoothly at the consistent seam, long stitch length(8mm) and high foot lift(13mm), large working space under the arm, low noise and ease maintenance. Suitable for sewing medium to heavy weight materials, such as bags, backpack, travel bags, sofa, laminated leather products etc.


Features

Direct Drive Industrial Sewing Machine GC0303DL-7 Features

  • 1-needle, top and bottom feed, direct drive industrial sewing machine.

  • Double capacity horizontal axis rotary hook and large bobbin.

  • Long stitch length and high foot lift.

  • Electronic thread tension and quick back tack button.

  • Very popular top and bottom feed industrial sewing machine with automatic thread trimmer for most bags factories.


Specifications

Direct Drive Industrial Sewing Machine GC0303DL-7 Specifications

Model

GC0303DL-7

Number of Needle

1 needle

Max.Sewing Speed

2500SPM

Max.Stitch Length

8mm

Max.Lift of the Presser Foot

13mm

Working Space

330x135mm

Hook

Double capacity large horizontal rotary hook

Needle

DPx17 ,14-25#


Product Details

Direct Drive Industrial Sewing Machine GC0303DL-7 Details

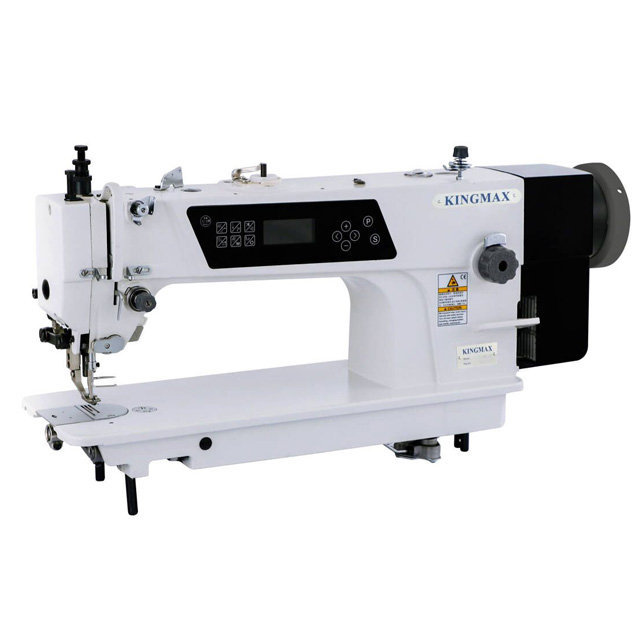

direct drive top and bottom sewing machine - KINGMAX
