Direct-driven 1-needle Compound Feed and Walking Foot Lockstitch Sewing Machine 1541S Series

GC1541D      1-needle, direct drive, flat bed sewing machine
GC1541D-7   1-needle, direct drive, flat bed sewing machine
                      with thread trimmer
GC1541SD     1-needle, direct drive, flat bed sewing machine
                      with safety clutch
GC1541SD-7  1-needle,direct drive, with safety clutch & thread
                      trimmer
  • GC1541 D Series

  • KINGMAX

  • One Needle

  • Compound Feed

  • 2500

Availability:

Product Descriptions

Direct Drive Industrial Sewing Machine GC1541 D Series Descriptions

This series machines are high speed, single needle, direct drive, compound feed with the walking foot, flat bed sewing machine. Both of GC1541D and GC1541SD are the direct drive single needle industrial sewing machines, which only have the upper and lower needle position function, GC1541D-7 and GC1541SD-7 are the direct drive compound feed sewing machines, which have the full function with automatic thread trimmer, automatic foot lift and back tacking. S version machines have the safety clutch, which prevents hook damage. All of these machines have the strong direct drive control, the double capacity horizontal axis hook, which convenient for the bottom thread change during the sewing, built-in bobbin winder, the top dial as the standard device for the alternative feet movement adjustment, belt transmission, box type feeding, the compound feed with the walking foot assures the machine stitch the multi-layers smoothly and stably, simple inside structure, low noise and ease maintenance. Suitable for sewing medium to heavy weight materials, such products as bags, cases, sofa, belts as well as other leather products etc.

Features

Direct Drive Industrial Sewing Machine GC1541 D Series Features

  • High speed, 1-needle, direct drive, flat bed industrial sewing machines.

  • Large horizontal axis hook and large bobbin.

  • The powerful direct drive control system with the fashion panel.

  • All of them have the top dial for the quick alternative feet adjustment.

  • High level single needle direct drive sewing machines for the most leather products factory, especially for the automobile upholstery factory.

Specifications

Direct Drive Industrial Sewing Machine GC1541 D Series Specifications

Model

GC1541D

GC1541D-7

GC1541SD

GC1541SD-7

Number of Needle

1 needle

Max.Sewing Speed

2500SPM

Max.Stitch Length

9mm

Max.Lift of the Presser Foot

16mm

Hook

Double capacity horizontal axis hook

Safety Clutch

None

Yes

Automatic Thread Trimmer

None

Yes

None

Yes

Needle(Standard)

DPx17, 19-23#


Product Details

Direct Drive Industrial Sewing Machine GC1541 D Series Details

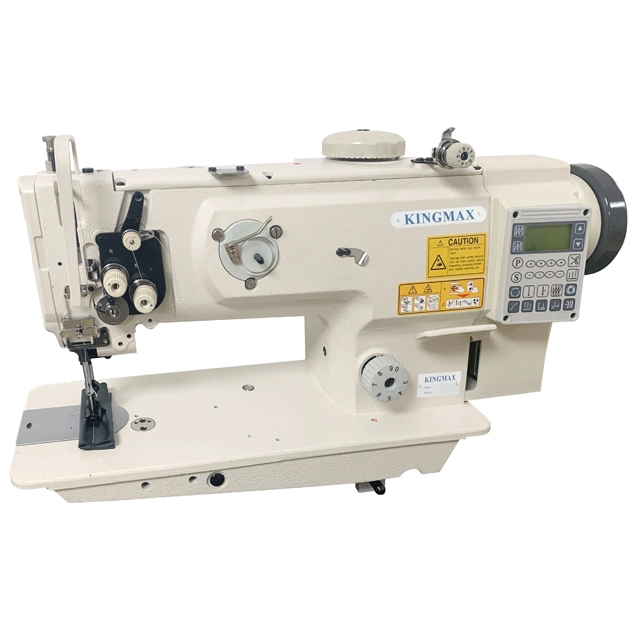

direct drive single needle industrial sewing machine - KINGMAX
