GT199/146D Series
KINGMAX
One Needle
Walking foot feed
2500SPM
Availability: | |
---|---|
Product Descriptions

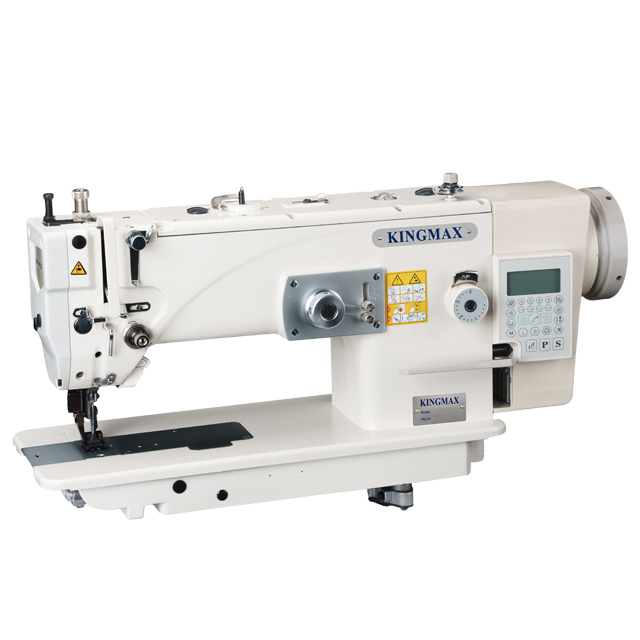

Direct-driven 1-needle Auto Thread Trimmer Zigzag Sewing Machine Descriptions
This series direct-driven machines are high speed direct-driven 1-needle fixed cam zigzag sewing machine with/without auto thread trimmer. GT199D series are the bottom feed zigzag machine, GT199D-7 is the machine with auto thread trimmer. GT146D series are the bottom feed and walking foot zigzag machine, GT146D-7 has the auto thread trimming function. All of these machines have 3 different zigzag stitch, 1 step 2 points, 2 steps 3 points and 3 steps 4 points, but only come with one fixed zigzag cam. Suitable for zigzag, join and decorative sewing medium to heavy weight materials, such as bags, shoes, denim, canvas, gloves, diving dress and more.
Features
1-needle high speed direct-driven zigzag sewing machine
Bottom feed or bottom feed and walking foot zigzag machine
Large horizontal axis rotary hook and large bobbin
The strong mini direct-driven servo motor and control
Specifications
Model | GT199D | GT199D-7 | GT146D | GT146D-7 |
Number of Needle | 1 Needle | |||
Auto Thread Trimmer | No | Yes | No | Yes |
Max.Sewing Speed | 2500SPM | |||
Max.Stitch Length | 5mm | |||
Max.Lift of the Presser Foot | 13mm | |||
The Max.Zigzag Width | 9mm | |||
Hook | Large horizontal axis rotary hook | |||
Zigzag Stitch Patterns | 1 step 2 points,2 step 3 points,3 step 4 points | |||
Needle(Stand) | DPx5,14-22# |
