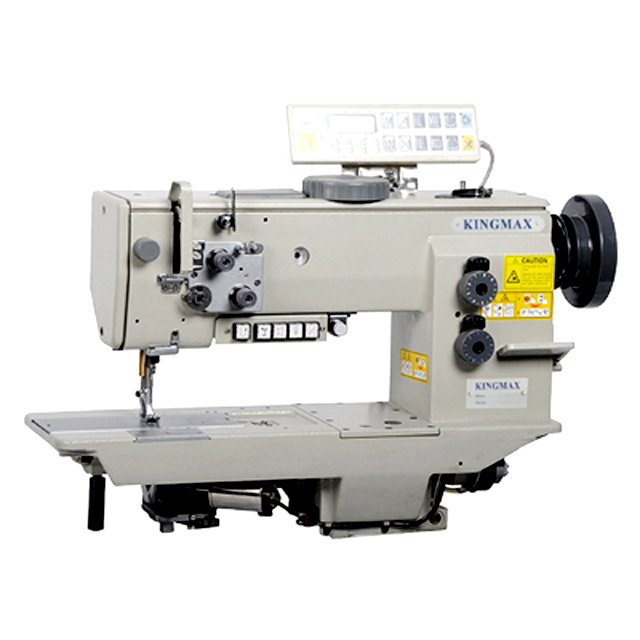

High Speed 1-needle Compound Feed Edge Trimming and Binding Lockstitch Sewing Machines 767 Series

GA767-AE-73 Edge trimming and binding machine
GA767-LG-73 Synchronized binding machine
GA767-ET-73 Edge trimming machine


  • GA767AE Series

  • KINGMAX

  • One&Two Needle

  • Compound feed with the walking foot

  • 2500

Availability:

Product Descriptions

Double Needle Industrial Sewing Machine GA767 Series Descriptions

These three machines are high speed, 1-needle, flat bed, bottom feed, needle feed and walking foot with the left-side hook with the edge trimming and binding device to realize the trimming and binding function together or separately, which developed from the regular GA767-A7-373 machine. GA767-AE-73 is the machine with the edge trimming and binding function together, GA767-LG-73 has the synchronized binding function only, GA767-ET-73 is the machine with the synchronized edge trimming only. Suitable for sewing medium to heavy weight materials, such as quilts, bedspreads, sleeping bags, cushions, car mats, tents, awning valances and soft tops of convertibles

with open-edged or pre-folded binding and more.


Features

Double Needle Industrial Sewing Machine GA767 Series Features

  • High speed, 1-needle, flat bed sewing machines with left-side hook

  • 3-sublclass models with the different application as the option

  • Large vertical rotary hook and large bobbin

  • Automatic lubrication system


Specifications

Double Needle Industrial Sewing Machine GA767 Series Specifications

Model

GA767-AE-73

GA767-LG-73

GA767-ET-73

Number of Needle

1 needle

Max.Sewing Speed

2000SPM

Max.Stitch Length

9mm

Max.Lift   of the Presser Foot

16mm

Hook

Double capacity   vertical axis hook

Safety Clutch

Yes

Needle(standard)

DPx17, 19-23#

Machine Main Function

Trimming & binding

Binding only

Edge trimming   only


Product Details

Double Needle Industrial Sewing Machine GA767 Series Details

767-AE(细节)
