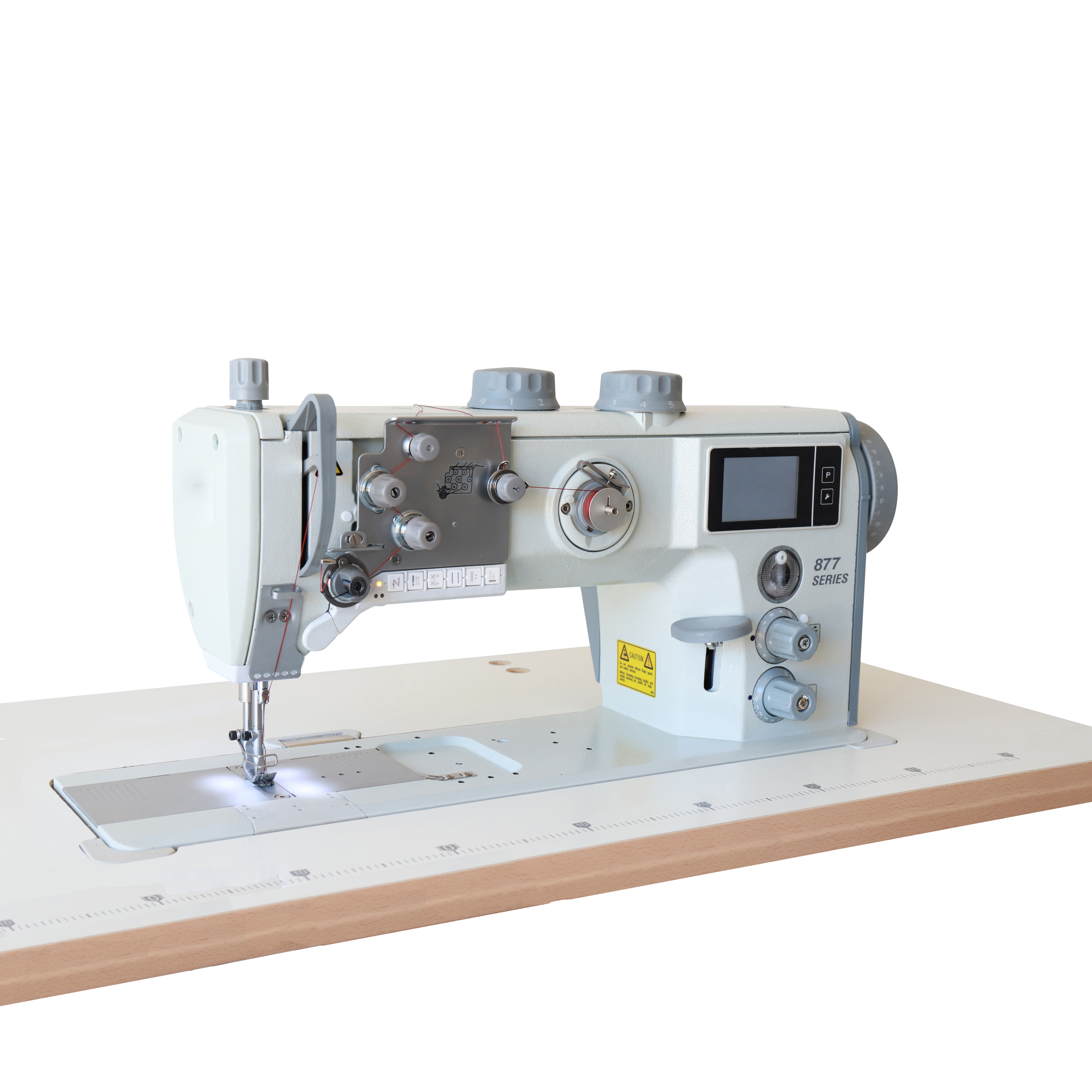

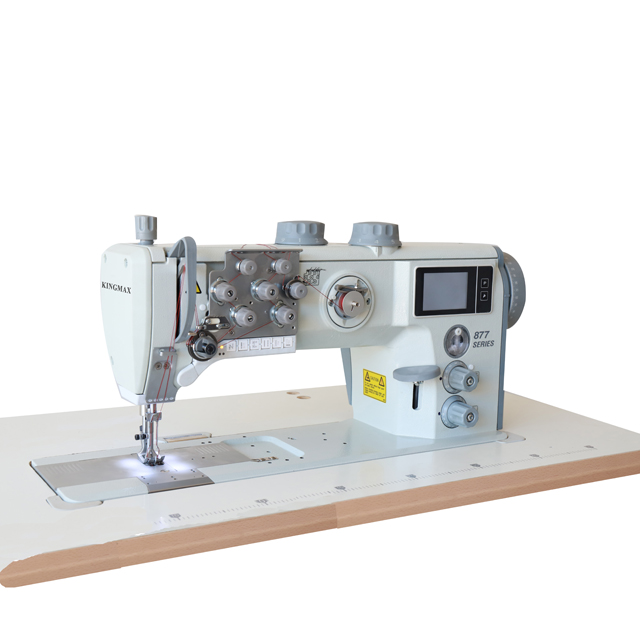

Double Needle Industrial Sewing Machine GA877-211132 2-Needle Series

2-Needles, high speed, flat-bed, compound feed with walking foot, medium-heavy duty lockstitch sewing machines
  • GA877-211132 Series

  • KINGMAX

  • Two Needle

  • Compound feed with the walking foot

  • 3000

Availability:

Product Descriptions

Double Needle Industrial Sewing Machine GA877-211132 2-Needle Series Descriptions

This series machines are one of the best medium-heavy duty flat bed lockstitch sewing machines in the globe market at present. 2-needle, flat-bed, high speed, compound feed with the walking foot, touchable operation panel, 3 times extra large rotary hook(32mm diameter),automatic thread trimmer by the solenoid, automatic foot lift and automatic back tacking, LED sewing lamp etc. The machine modern design with the large working space under the arm allows the good view on the sewing area. The strong motor, the integrated first and second (as the option) stitch length adjustment, the alternative feet with the single dial (dual dial as the option) assure the machine stitch the multi-layers material stable and consistently, the K version machine with the long stitch length for the heavy duty material, the synchronized rear puller as the option, also 26mm diameter hook is available as the option. Suitable for sewing medium to heavy duty materials, such as automobile upholstery, furniture, plastic products etc. Total basic 8 models even more as the option as per the below diagram.

Double Needle Industrial Sewing Machine - KINGMAX


Features

Double Needle Industrial Sewing Machine GA877-211132 2-Needle Series Features

  • High speed, 2-needle, flat bed sewing machine with the touchable panel.

  • Large vertical rotary hook(32mm diameter) and large bobbin.

  • Two pitch knobs as the option.

  • Two dials as the option for the alternative feet adjustment.

  • The best medium-heavy weight flat bed sewing machines for the automobile upholstery factories.


Specifications

Double Needle Industrial Sewing Machine GA877-211132 2-Needle Series Specifications

Double Needle Industrial Sewing Machine - KINGMAX

Model

GA877-2xxxxx

877-2xxxxxK

Number of Needle

2   needle

Max.Sewing Speed

3000RPM

1500RPM

Max.Stitch Length

9mm

12mm

Max.Lift of the Presser Foot

20mm

Hook

Large vertical axis rotary hook

Lubrication System

Automatic

Needle(Standard)

DPx17

Needle Gauge

4-50mm

Working Space

335x125mm


Product Details

Double Needle Industrial Sewing Machine GA877-211132 2-Needle Series Details

Double Needle Industrial Sewing Machine - KINGMAX
