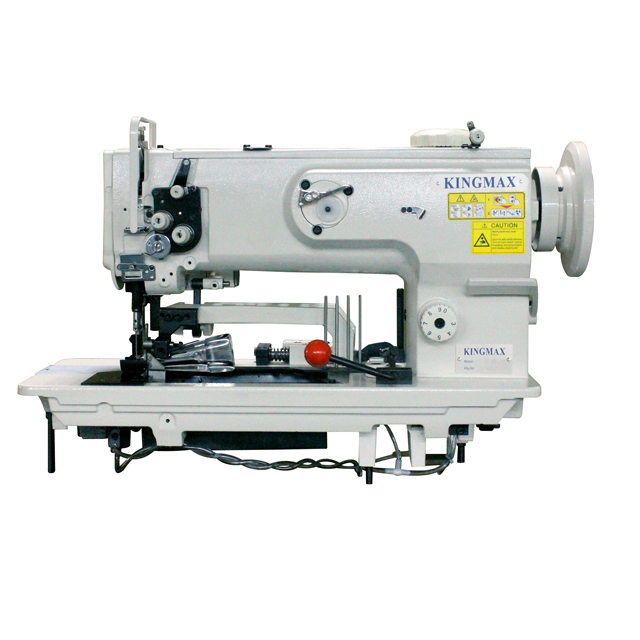

Long Arm 1-needle Compound Feed Edge Trimming and Binding Lockstitch Sewing Machine

  • GC1508-AEL

  • KINGMAX

  • One Needle

  • Compound Feed

  • 2000

Availability:

Product Descriptions

Edge Trimming and Binding Sewing Machine GC1508-AEL Descriptions

This is 14 inch long arm high speed, single needle, compound feed with the synchronized edge trimming and binding device, flat bed, industrial lockstitch sewing machines, which developed from the regular GC1508 machines. It use the larger vertical axis rotary hook and large bobbin, the alternative vertical movement mechanism controlled by the top dial, front built-in bobbin winder, dual tension mechanism, safety clutch by button prevents the hook damage during the sewing, the compound feed with the walking foot assures the machine stitch multi-layers materials smoothly with the consistent seam, the synchronized moving edge cutter and binder trim and binding material together, which control by the ball type lever, large working space under the sewing arm. Specially designed for the trimming and binding application of the bedding industry, such as cushion, pillow, bolster, quilts, bedspreads, sleeping bags and more.


Features

Edge Trimming and Binding Sewing Machine GC1508-AEL Features

  • Compound feed with walking foot feeding mechanism
  • Large vertical axis hook and large bobbin

  • Automatic lubrication system

  • Large working space under the arm

  • Small and large size binder as the option


Specifications

Edge Trimming and Binding Sewing Machine GC1508-AEL Specifications

Model

GC1508-AEL

Number of Needle

1 needle

Max.Sewing Speed

2000SPM

Max.Stitch Length

9mm

Max.Lift of the Presser Foot

16mm

Hook

Double capacity vertical axis hook

Safety Clutch

Yes

Overedge Width

22.50mm

Working Space

355x120mm

Needle

DPx17,  19-23#


Product Details

Edge Trimming and Binding Sewing Machine GC1508-AEL Details

industrial binding sewing machine - KINGMAX
