GC1508-AE

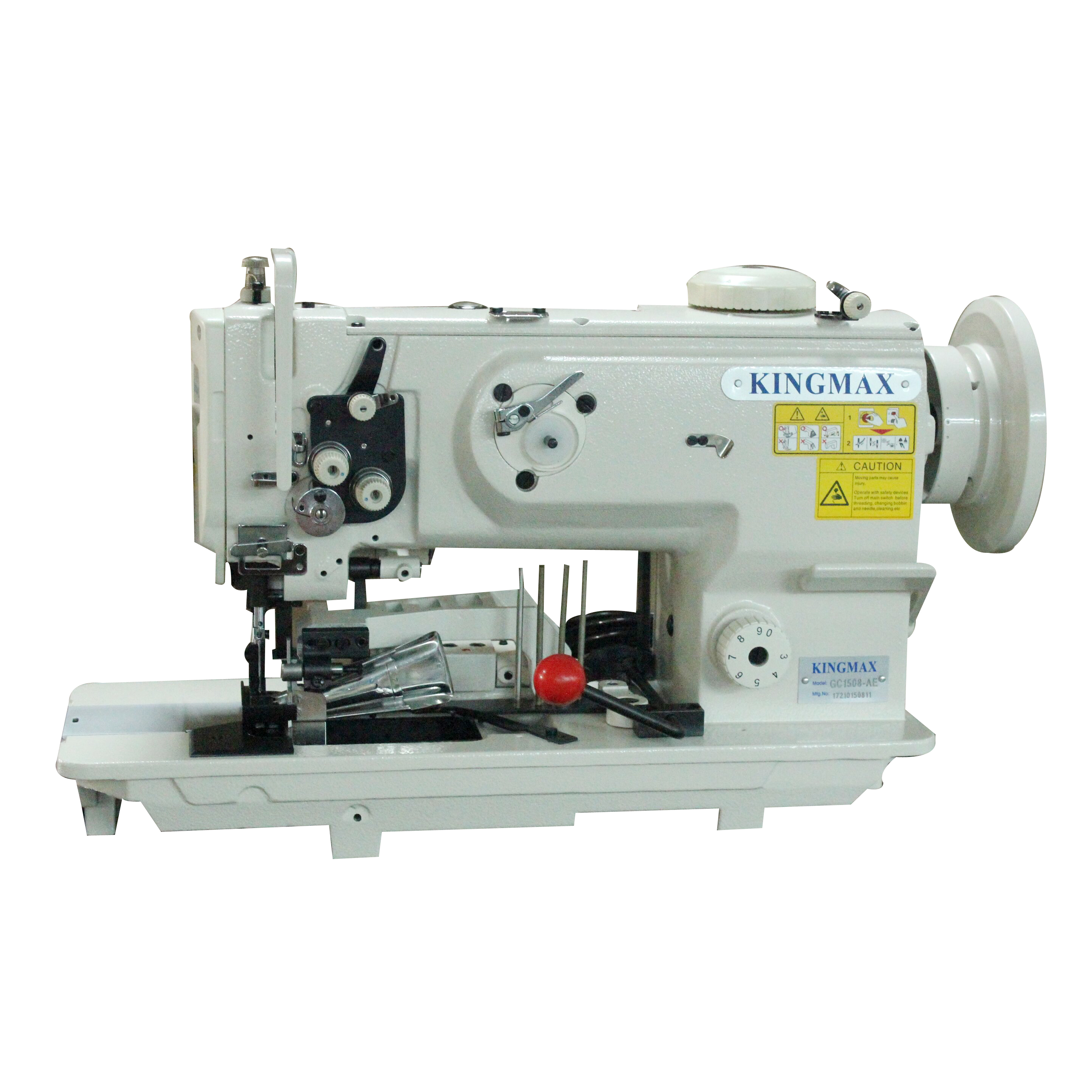

GC1508-AE 1-needle, compound feed with edge cutter and binder
  • GC1508-AE

  • KINGMAX

  • One Needle

  • Compound Feed

  • 2000

Availability:

Product Descriptions

This is high speed, single needle, compound feed with the edge trimming and binder, flat bed, industrial lockstitch sewing machines, which developed from the regular GC1508-NH machines. It has the larger vertical axis rotary hook and large bobbin, the alternative vertical movement mechanism controlled by the top dial, front built-in bobbin winder, dual tension mechanism, safety clutch by button prevents the hook damage during the sewing, the compound feed with the walking foot assures the machine stitch multi-layers materials smoothly with the consistent seam, the synchronized moving edge cutter and binder trim and binding material together, which control by the ball type lever. Different binder size available depends on the different size tape. Specially designed for the trimming and binding application of the bedding industry, such as cushion, pillow, bolster, bedding etc.


Features

  • High speed, 1-needle, edge cutter and binding lockstitch sewing machine.

  • Large vertical axis hook and large bobbin.

  • The safety clutch by button prevents the hook damage.

  • The synchronized edge cuter and binder.

  • Very popular edge cutter and binding sewing machine for the cushion and pillow factory.


Specifications

Model

GC1508-AE

Number of Needle

1 needle

Max.Sewing Speed

2000SPM

Max.Stitch Length

9mm

Max.Lift of the Presser Foot

16mm

Hook

Double capacity vertical axis hook

Safety Clutch

Yes

Overedge Width

12mm

Working Space

255x100mm

Needle

DPx17, 19-23#


Product Details

auto thread cutter sewing machine
