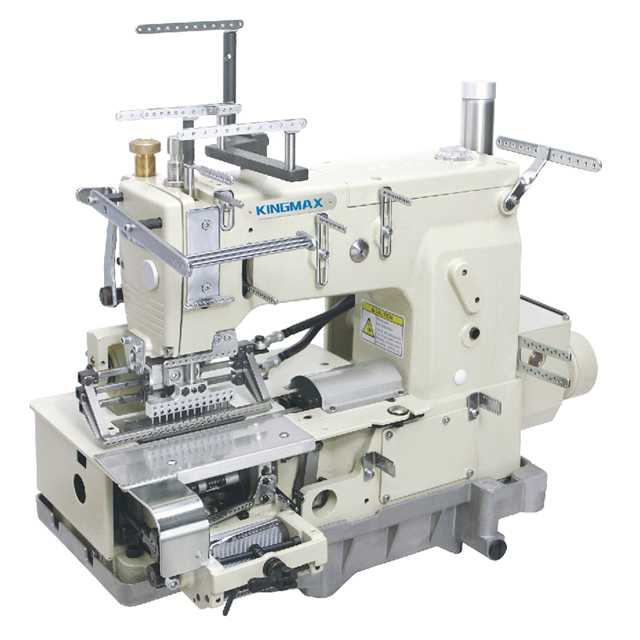

12 Needle Smocking and Shirring Machine GK1412PSSM-ET-MD

  • GK1412PSSM-ET-MD

  • KINGMAX

  • 12 needles

  • 2500

Availability:

Product Descriptions

12 Needle Smocking And Shirring Machine GK1412PSSM-ET-MD Descriptions

This machine is a flat bed, high speed,12 needle 36 thread double chain stitch smocking and shirring machine, as well a with the MD(metering device),equipped with the vertical looper movement mechanism, the rear puller(smooth and teeth puller as the option), which ensures the smoothly feeding and beautiful stitch on the thick fabrics, even crossing seams, 40 smocking cams available, which can make various patterns. Mainly designed for the lap seaming, attaching waistbands and line tapes, inserting elastics on the medium and heavy weight fabrics, such as products, like under wear, sports wear, interior decorated products(table clothes, curtain etc), lady's wear etc. 12-needle, 24-thread version machines with the different applications(PMD,PQ,PY ETC) available as the option. Also, 4-needle, 6-needle, 8-needle version machines available too.


Features

12 Needle Smocking And Shirring Machine GK1412PSSM-ET-MD Features

  • Multi needle, double chainstitch smocking and shirring sewing machines.

  • High speed with the vertical looper movement mechanism.

  • The rear puller mechanism (top and bottom, smooth and teeth as the option).

  • Various subclasses models as the option according to the different requests.

  • Wide application for lap seaming, attaching waist bands and line tapes, inserting elastics on the medium and heavy weight fabrics.


Specifications

12 Needle Smocking And Shirring Machine GK1412PSSM-ET-MD Specifications

Model

GK1412PSSM-MD

Max. Sewing Speed

2500SPM

Needle Number

12-needle, 36-threads

Needle Bar Stroke

34mm

Max. Presser Foot Lift

10mm

Stitch Length

1.8-4.5mm

Needle Gauge

3/16,1/4

Needle

TVx57  #14


Products Details

12 Needle Smocking And Shirring Machine GK1412PSSM-ET-MD Details

12 Needle Smocking And Shirring Machine GK1412PSSM-ET-MD -KINGMAX
