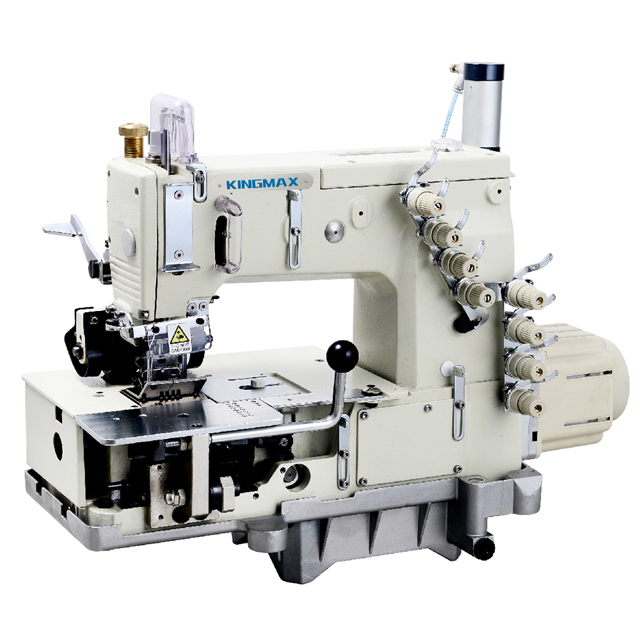

Double Chainstitch Sewing Machines GK1508P Series

GK1508-P       Basic Machine
GK1508-PD    Direct-driven Version Machine


  • GK1508-P/PD

  • KINGMAX

  • 4 Needles

  • 4500

Availability:

Product Descriptions

Double Chainstitch Sewing Machines GK1508P Series Descriptions

This series machines are the flat-bed, high speed, double chainstitch sewing machine, 4-needle, 8-thread, equipped with the horizontal looper movement mechanism, the rear puller(top and bottom puller), which ensures the smoothly feeding and beautiful stitch on the thick fabrics, even crossing seams. Mainly designed for the lap seaming, attaching waistbands and line tapes, inserting elastics on the medium and heavy weight fabrics, especially for jeans etc. GK1508-PD is the direct-driven version machine with the top and bottom needle position function. 3-needle, 6-thread version machines (GK1503 series) and 6-needle, 9-thread version machines (GK1509 series) are also available as the option.


Features

Double Chainstitch Sewing Machines GK1508P Series Features

  • Double chainstitch sewing machines.

  • High speed with the horizontal looper mechanism.

  • The rear puller mechanism (top and bottom).

  • Various subclasses models as the option according to the different requests.

  • Wide application for lap seaming, attaching waist bands and line tapes, inserting elastics on the medium and heavy weight fabrics, especially for jeans.


Specifications

Double Chainstitch Sewing Machines GK1508P Series Specifications

Model

GK1508-P

GK1508-PD

Max.Sewing Speed

4500SPM

Needle Bar Stroke

34mm

Max.Presser Foot Lift

10mm

Stitch Length

1.8-4.5mm

Needle Gauge

1/4-1-1/4,1/4-3/4-1/4,3/16-1-3/16

Needle

TVx5 #21


Product Details

Double Chainstitch Sewing Machines GK1508P Series Details

Double Chainstitch Sewing Machines GK1508P Series-KINGMAX
