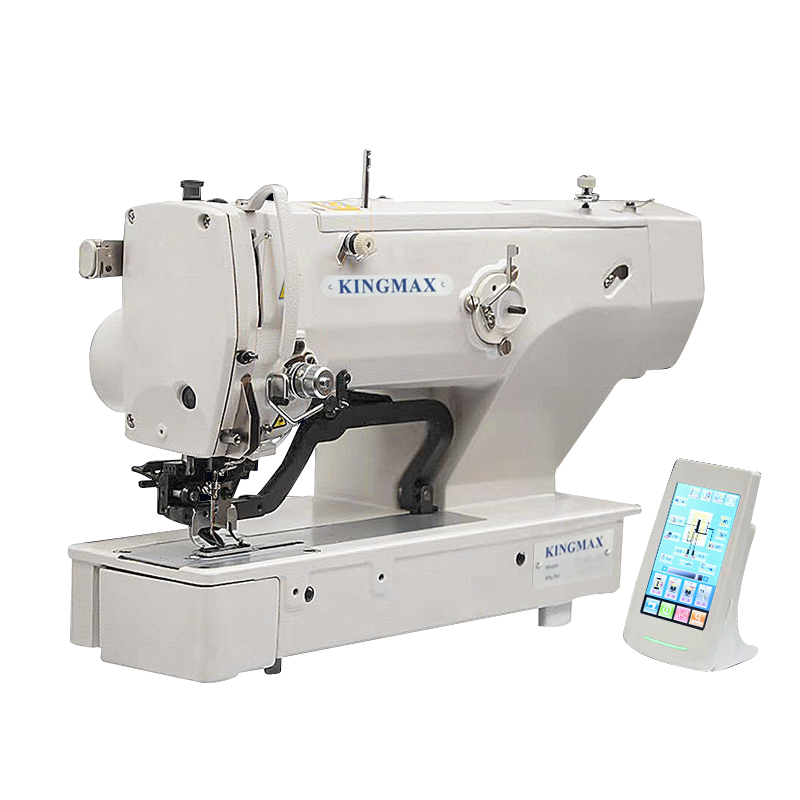

Computer Controlled Lockstitch Buttonholing Sewing Machines GT1790 Series

  • GT1790 Series

  • KINGMAX

  • One Needle

  • 4200

Availability:

Product Descriptions

Computer controlled Lockstitch Buttonholing Sewing Machines GT1790 Series Descriptions

This series machines are computer-controlled, high speed, 1-needle, lockstitch buttonholing sewing machine, direct-drive, the dry machine head, which only have to lubricate the hook part area, electronic thread tension device, auto thread trimmer with automatic foot lift, touchable panel with the wide screen and programmable function with USBconnector, 30 patterns store as the standard, it can be input maximum 99 patterns. The GT1796 model machine can realize 220mm button hole length as the largest size. One series best and fastest speed electronic buttonholing sewing machines with the different button length for men's wear, lady's wear, blouse, working clothes etc.K version is also available for the knitting clothes. such as sweaters and knitting fabric underwear etc

Features

Computer controlled Lockstitch Buttonholing Sewing Machines GT1790 Series Features

  • 1-needle, direct-driven, lockstitch button hole sewing machine.

  • Touchable panel with the input function and USB connector

  • Automatic thread trimmer& Electronic thread tension device.

  • Multi models with the different button hole length, which can up to 220mm.

  • The best and fastest electronic button hole sewing machines for lady and men's wears, blouses, working clothes etc.


Specifications

Computer controlled Lockstitch Buttonholing Sewing Machines GT1790 Series Specifications

Model

GT1790

GT1792

GT1793

GT1794

GT1795

GT1796

GT1790K

Number of Needle

1-needle

Needle Bar Stroke

34.60mm

Max.Sewing Speed

4200SPM

Max.Lift of the Working Clamp

14mm(Standard)

Button Hole Length(mm)

6.35-19.05

6.4-25.40

6.4-31.80

6.4-60

6.4-110

6.4-220

6.35-19.05

Numbers of the Standard Patterns

30 patterns

Numbers of the Input Extra Patterns

99 patterns

Hook

The standard rotary hook

Needle(Standard)

DPx5


Product Details

Computer controlled Lockstitch Buttonholing Sewing Machines GT1790 Series Details

Computer controlled Lockstitch Buttonholing Sewing Machines GT1790 Series-KINGMAX
