Product Descriptions

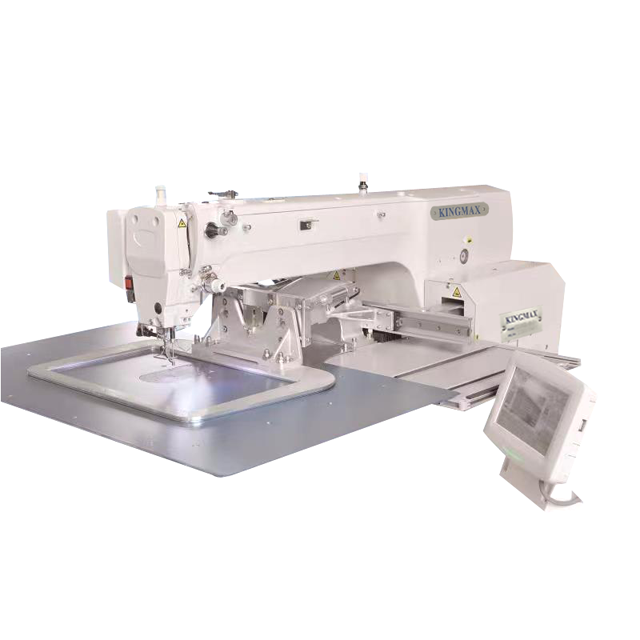

The feeding of this series machines is driven by the closed-circle stepping motor(impulse motor),which make the beautiful stitch, even at the high speed(the max. speed can up to 2700RPM/minute),electronic thread tension device, thread breakage detection device, high torque and powerful main driven servo motor(550W)ensures the needle penetration force, and the unique structure foot make the machine sew multi-layers material with the consistent stitch smoothly. USB pattern storage, simple panel (touchable panel available as the option) and programmer (as option), easily to edit all kinds stitches, in order to meet the complex pattern demand. Mainly suitable for sewing medium weight to heavy weight materials, especially, one ideal machine for the shoes and footwear products.
Features
Large size sewing area: 300x200mm.
Electronic thread tension device.
Thread breakage detection device.
Thread trimming with the high working clamp lift.
One ideal large pattern sewing machines for shoes and footwear manufacturers.
Specifications
Model | GT342G-3020 |
Max. Sewing Speed | 2700SPM |
Sewing Area | 300x200mm |
Max. Presser Foot Lift | 30mm |
The Max.Stitch Length | 12.70mm |
Needle Bar Stroke | 41.20mm |
Hook | Double-capacity shuttle hook |
Needle | DPx17 #18 |
