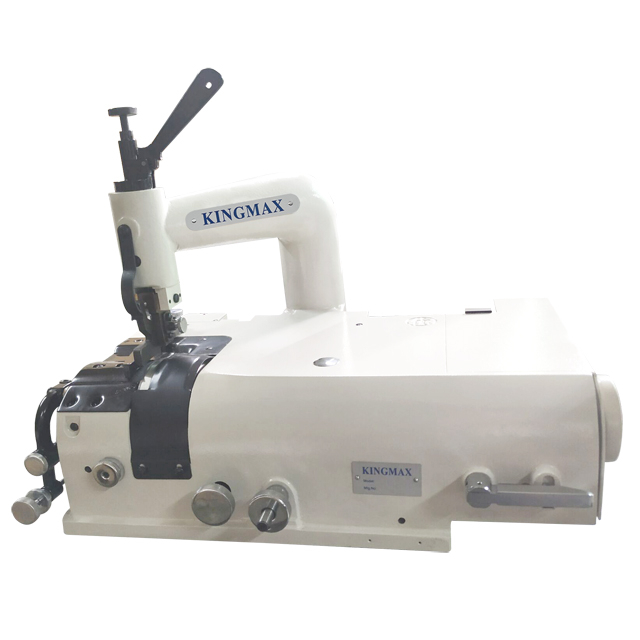

Heavy Duty Leather Skiving Machine GT801 Series

GT801      Standard leather skiving machine
GT801H   Heavy duty leather skiving machine
GT801E    Direct-driven leather skiving machine

  • GT801 Series
  • KINGMAX
  • 1270&1400
Availability:

Product Descriptions

Heavy Duty Leather Skiving Machine GT801 Series Descriptions

This series machines are universal leather skiving machines, GT801 is one standard leather skiving machine, GT801H is the heavy duty leather skiving machine with the top and bottom roller feeding system, GT801E is the direct-driven version machine with two strong servo motors for the main driving and round knife and more fine adjusted function. These 3 machines bell knife structure, which designed to scrap all kinds of leather products. Built-in automatic knife sharpening and adjustable speed control. Equipped with the knife protecting cover to prevent the operator from injury. Maximum width of skiving can up to 50mm; Suitable for skiving the edge of folding seam, as well as thinness-chopping of PU spares and all kinds of leather products, rubber such as saddle and harness, strap, leather coat, luggage, and leather gloves etc. These two machines are the most popular skiving machines in the most leather works.


Features

Heavy Duty Leather Skiving Machine GT801 Series Features

  • Bell knife type skiving machine.

  • Built-in knife sharpening system with the speed adjusted control.

  • The knife cover prevents the user from the injury.

  • The max. skiving width can up to 50mm for both of these two machines.

  • The most necessary popular skiving machines in the most leather works.


Specifications

Heavy Duty Leather Skiving Machine GT801 Series Specifications

Model

GT801

GT801E

GT801H

Max. Sewing Speed

1400SPM

1270SPM

Feeding Structure

Bottom feed

Top and bottom feed

Max. Skiving Width

50mm

Knife Size

∮118*114*54mm

Feeding Wheel Speed

62, 99, 132RPM


Product Details

Heavy Duty Leather Skiving Machine GT801 Series Details

heavy duty leather skiving machine 拷贝
