Product Descriptions

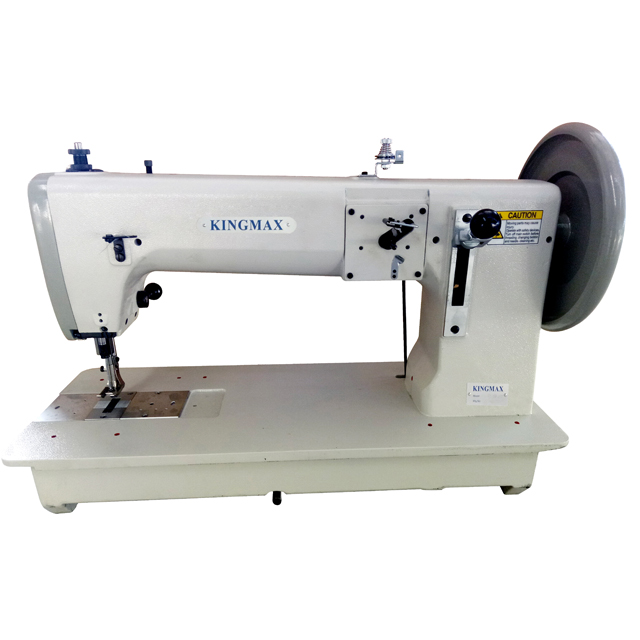

These two machines are high the single needle, large barrel shuttle hook, extra heavy duty, flat bed, industrial lockstitch sewing machine with the thick thread. GA273 is the top and bottom feed heavy duty industrial sewing machine, GA243 is the compound feed with walking foot, thick thread industrial sewing machine. Both of them have the large barrel shuttle hook and large bobbin, built-in bobbin winder, ball type reverse lever, long needle bar stroke and long stitch length(10mm), high foot lift(22mm), especially GA243 has the compound feeding structure with the walking foot assures the machine stitch the multi-layers materials smoothly and stably, consistent and perfect seam, large working space under the arm. The large handle wheel, air foot lift and back tacking as the option. Suitable for sewing heavy duty to extra heavy weight materials with the thick thread, such products as harness, saddlery, sofa, cargo slings, safety belts, bags, tents etc.
Features
1-needle, flat bed, extra heavy duty sewing machines with thick thread.
Large barrel shuttle hook and large bobbin.
Long stitch length and high foot lift.
Large handle wheel, air foot lift and back tacking as the option.
Very popular heavy duty sewing machines for the most leather furniture and saddlery products factory.
Specifications
Model | GA243 | GA273 |
Number of Needle | 1 needle | |
Max.Sewing Speed | 800SPM | |
Max.Stitch Length | 10mm | |
Max.Lift of the Presser Foot | 22mm | |
Feeding Structure | Compound feed | Top and bottom feed |
Hook | Large barrel shuttle hook | |
Needle(Standard) | DYx3 |
