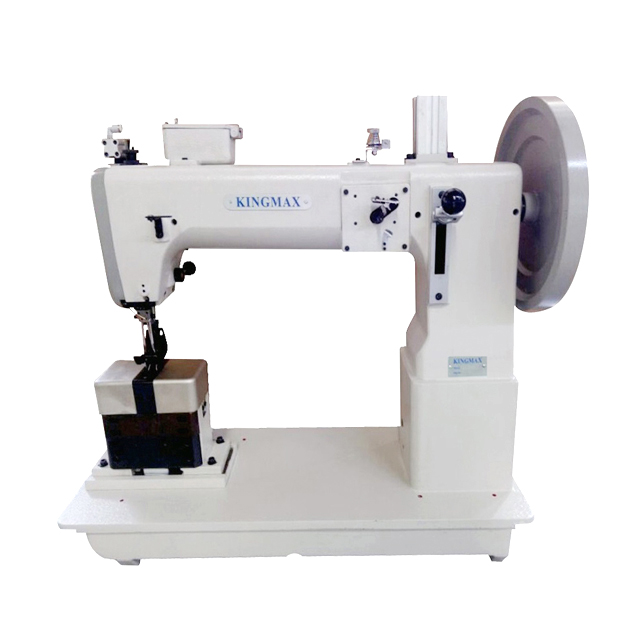

Industrial Post Bed Sewing Machine GA243H-1&2

GA243H-1    Single needle, post bed, lockstitch
                     sewing machine
GA243H-2    Double needle, post bed, lockstitch
                     sewing machine
  • GA243H-1&2

  • KINGMAX

  • One&Two Needle

  • Compound Feed

  • 500

Availability:

Product Descriptions

Industrial Post Bed Sewing Machine GA243H-1&2 Descriptions

These two machines are one and two needle, extra heavy duty, post bed, compound feed with walking foot, industrial lockstitch sewing machines for the thick thread. Both of them are the large barrel shuttle hook, post bed, industrial lockstitch sewing machine, powerful and effective compound feed with the walking foot for the constant stitch and trouble-free material feed, built-in bobbin winder, large hand wheel, large needle bar stroke, high take-up lever and foot lift, both two machines come with the air foot lift and bar tacking. There are the left and right post-bed as the option for GA243H-1. Suitable for sewing heavy duty to extra heavy duty materials with thick threads, such products as sofa, bags, tents, tarpaulins, technical textiles and other heavy duty leather products etc.

Features

Industrial Post Bed Sewing Machine GA243H-1&2 Features

  • Extra heavy duty, post-bed, industrial sewing machines.

  • Large barrel shuttle hook and large bobbin.

  • Air foot lift and bar tacking as the standard kits.

  • Large needle bar stroke and high foot lift.

  • Very good extra heavy duty post bed machine for the home upholstery with the thick thread, such as furniture factories etc.

Specifications

Industrial Post Bed Sewing Machine GA243H-1&2 Specifications

Model

GA243H-1

GA243H-2

Number of Needle

1 needle

2-needle

Max.Sewing Speed

500SPM

Needle Gauge

None

8,  10, 12, 16mm

Max.Stitch Length

12mm

Max.Lift of the Presser Foot

20mm

Hook

Large barrel shuttle hook

Needle(Standard)

DYx3, 27#


Product Details

Industrial Post Bed Sewing Machine GA243H-1&2 Details

compound feed with walking foot sewing machine - KINGMAX
