Long Arm Automatic Ornamental Sewing Machine

  • GA204L-105A

  • KINGMAX

  • One&Two Needle

  • 500SPM

Availability:

Product Descriptions

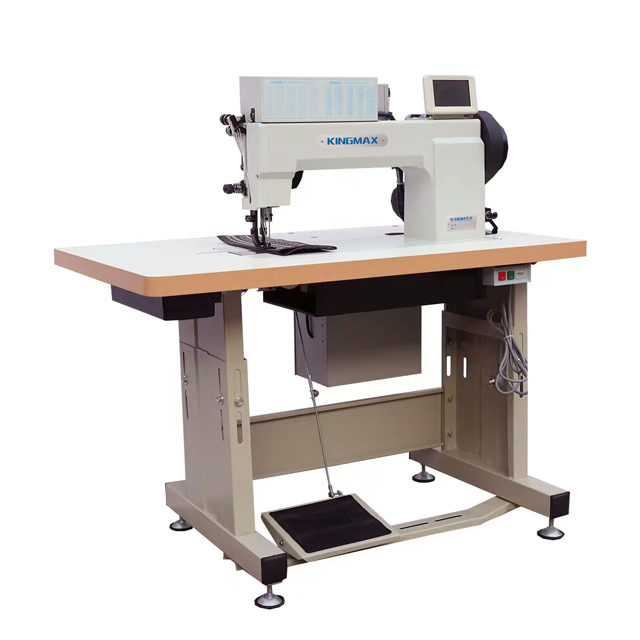

Long arm automatic ornamental sewing machine

Long arm automatic ornamental sewing machine GA204-105A is one computerized decorative sewing machine with the large shuttle hook and large bobbin. It adopts the bottom feed, high foot lift, long stitch length, large hand wheel, its 1 needle and 2 needle movement controlled by the rotated needle bar to realize 200 different patterns( 1 needle: 100 patterns, 2-needle: 200 patterns),and more patterns can be edited by the small smart panel. This long arm decorative sewing machine is developed from the regular GA204-105A,in order to sew and move large workpieces under the arm during the sewing.


GA204L-105A long arm automatic ornamental sewing machine is mainly designed for the ornamental and decorative sewing machine on most leather products with the thick thread, especially very good for sofa decorative sewing. Very professional computerized ornamental industrial sewing machines for the furniture industry world wide.


Features

  • Large working space under the arm.

  • Large barrel shuttle hook and large bobbin with thick thread.

  • Computerized with the smart touchable panel.

  • 200 patterns as the standard with more can be edited on the panel.

  • One high level professional sofa decorative sewing machine.


Specifications

Model

GA204L-105A

Number of Needle

2 needle(standard gauge:10mm)

Patterns

200(1-needle: 100, 2-needle: 100)

Max.Sewing Speed

500SPM

Max.Stitch Length

10mm

Max.Lift of the Presser Foot

20mm

Needle(standard)

DYx3

Hook

Large barrel shuttle hook

Working Space

420x185mm


Product Details

Long arm automatic ornamental sewing machine details
