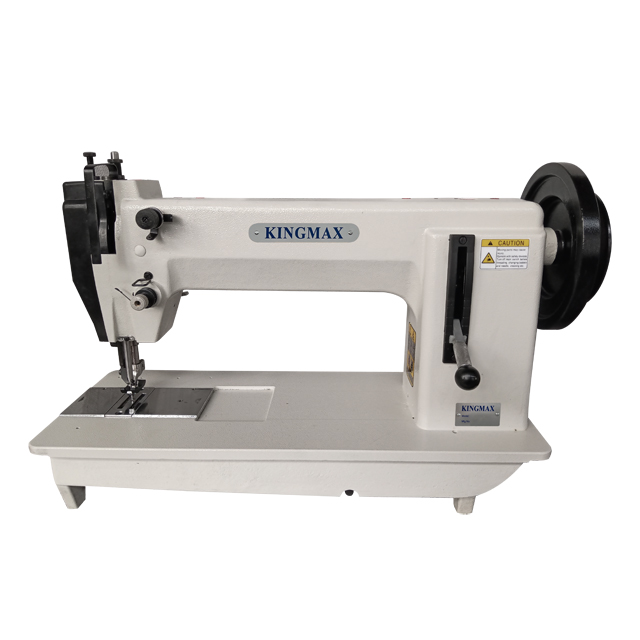

Top And Bottom Feed Heavy Duty Industrial Sewing Machine

GB6-181  1-needle, top and bottom feed (thick thread)
  • GB6-181

  • KINGMAX

  • One Needle

  • Top and Bottom Feed

  • 800

Availability:

Product Descriptions

Medium Materials Sewing Machine GB6-181 Descriptions

This is one single needle, top and bottom feed, large barrel shuttle hook, extra heavy duty, flat bed, industrial lockstitch sewing machine with the thick thread, simply, single needle thick thread sewing machine. It has the large barrel shuttle hook and large bobbin, ball type reverse lever, long needle bar stroke and long stitch length(12mm), high foot lift(22mm), the top walking foot and bottom feed dog make the machine feed the heavy weight material synchronously, consistent, and perfect seam, large working space under the arm, the bottom main shaft with the gear, low noise, and ease maintenance. Suitable for sewing heavy duty to extra heavy weight materials with the thick thread, such products as sofa, tents, bags, backpack, cargo slings, safety belts, as well as other technical textiles etc.


Features

Medium Materials Sewing Machine GB6-181 Features

  • 1-needle, flat bed, extra heavy duty sewing machines with thick thread.

  • Large barrel shuttle hook and large bobbin.

  • Long stitch length and high foot lift.

  • Large working space under the arm for the bulky workpieces.

  • One economical extra heavy duty industrial sewing for the sofa and safety products manufacturers.


Specifications

Medium Materials Sewing Machine GB6-181 Specifications

Model

GB6-181

Number of Needle

1 needle

Max.Sewing Speed

800SPM

Max.Stitch Length

12m

Max.Lift of the Presser Foot

22mm

Feeding Structure

Top and bottom feed

Hook

Large barrel shuttle hook

Needle

7x250/300


Product Details

Medium Materials Sewing Machine GB6-181 Details

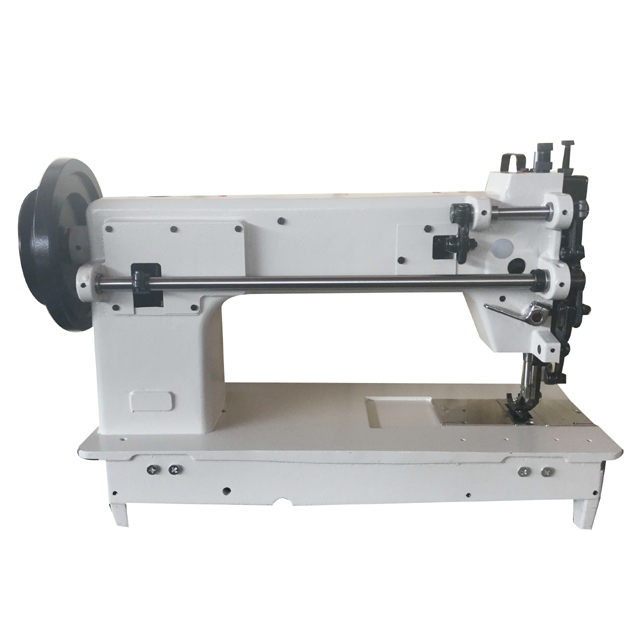

top and bottom feed industrial sewing machine
