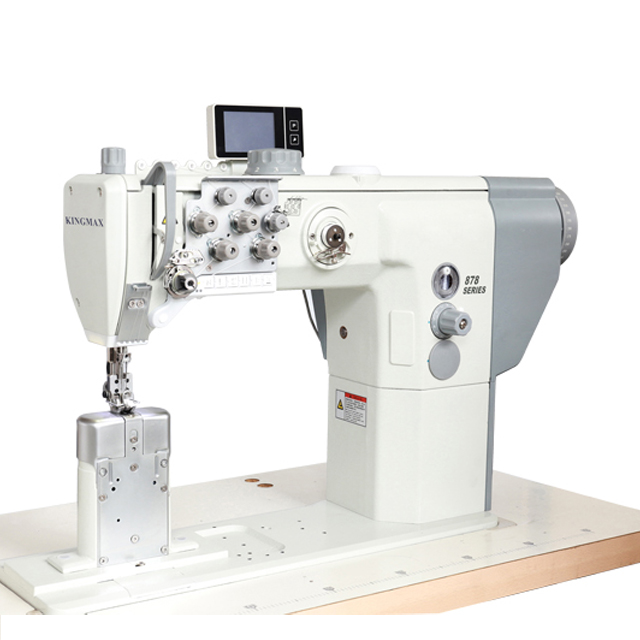

Double Needle Compound Feed and Walking Foot Post Bed Sewing Machine 868 Series

GA868-2xxxx     Double needle, post bed, medium-heavy
                           duty lockstitch sewing machine
  • GA868-2xxxx

  • KINGMAX

  • Double Needle

  • Compound feed with walking foot

  • 2500

Availability:

Product Descriptions

Post Bed Compound Feed Industrial Sewing Machine GA868-2XXXX Descriptions

This is double needle, post bed, high speed, compound feed with walking foot industrial sewing machines, which are the high rate of decorative stitching in the production of car seat cover, dashboard covers and door panels as well as the thick leather furniture products required the high-performance sewing. These series machines are developed from our regular flat bed GA867 sewing machine. Powerful mini servo motor guarantees lower noise and lower vibration running with high energy efficiency, the strong feeding structure with the bottom feed, needle feed and walking foot. Equipped with trimmer, automatic foot lift and automatic back tacking, LED light etc. Presser foot lift 20mm ensure the feeding and removing of bulky workpieces, the slim post bed facilitate the handling of difficultly accessible seam areas. The strong motor, the integrated first and second (as the option) stitch length adjustment, the alternative feet with the single dial (dual dial as the option) assure the machine stitch the multi-layers material stable and consistently, Suitable for sewing medium to heavy duty materials, such as automobile upholstery, thick leather furniture, hand bags etc.

868 code diagram

Features

Post Bed Compound Feed Industrial Sewing Machine GA868-2XXXX Features

  • High speed, 2-needle, flat bed sewing machine with the touchable panel.

  • The large vertical rotary hook with the diameter 26mm.

  • The powerful feeding capacity with the bottom feed, needle feed and walking foot.

  • High foot lift with the long stitch length.

  • Two pitch knobs and two dials as the option for the alternative feet adjustment.

Specificatons

Post Bed Compound Feed Industrial Sewing Machine GA868-2XXXX Specifications

Model

GA86-2xxxx

Number of Needle

2-needle

Post Bed Height

170mm

Max.Sewing Speed

2500SPM

Needle Gauge

8, 10, 12mm

Max.Stitch Length

9mm

Max.Lift of the Presser Foot

20mm

Needle(Standard)

DPx17 19-23#


Product Details

Post Bed Compound Feed Industrial Sewing Machine GA868-2XXXX Details

详情
