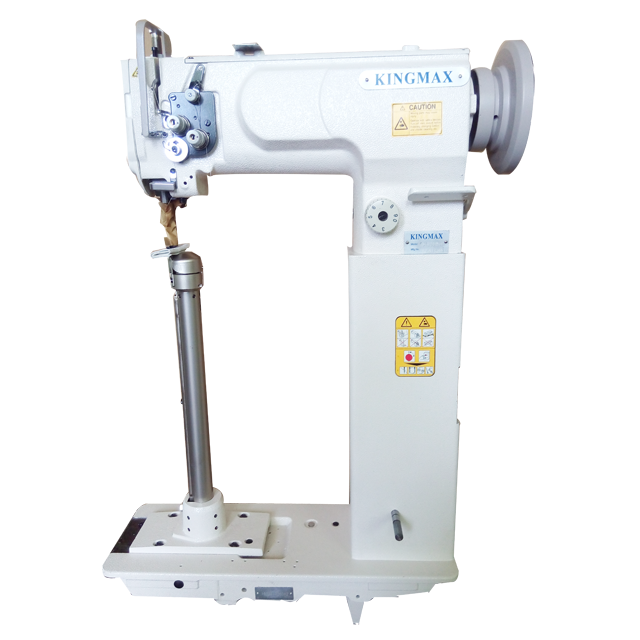

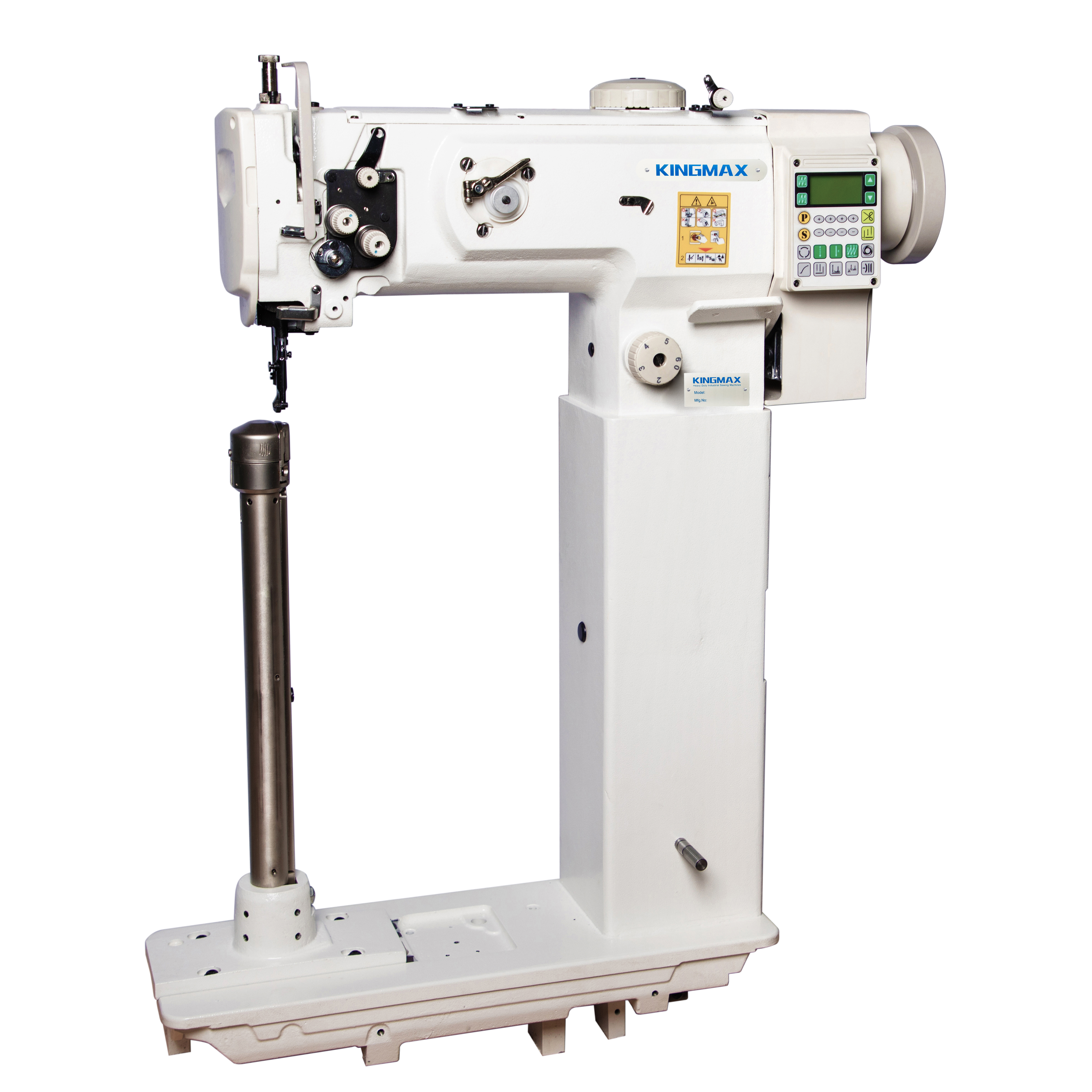

Post Bed Compound Feed Sewing Machine GC18365 Series

GC18365 Series        Single needle, 443mm post bed
                                 lockstitch sewing machine
GC18365-M Series   Single needle, 265mm post bed
                                 lockstitch sewing machine
  • GC18365 Series

  • KINGMAX

  • One Needle

  • Compound feed with the walking foot

  • 1600

Availability:

Product Descriptions

Post Bed Compound Feed Sewing Machine GC18365 Series Descriptions

These two machines are single needle, high speed, high post bed, compound feed with walking foot, industrial lockstitch sewing machine. All equipped with the small vertical axis rotary hook, unique needle plate designed for the small product, slim and round pipe post bed designed for the long and narrow product, powerful and effective compound feed with the walking foot for the constant stitch and trouble-free material feed, large working space under the arm for the large workpieces, high needle bar stroke and high foot lift, both the left and right post bed industrial lockstitch sewing machines version as the option. Suitable for sewing medium to heavy weight materials, such products as bags, boots, shoes, backpack, suitcases and other leather products etc.

Features

Post Bed Compound Feed Sewing Machine GC18365 Series Features

  • Two post bed height(265mm & 443mm), high post bed sewing machines.

  • Unique needle plate designed for the small size product.

  • Slim and round pipe post bed for the long and narrow product.

  • Both the left and right post bed sewing machines as the option.

  • Very good post-bed machines for the bag, shoes and boot manufacturers.


Specifications

Post Bed Compound Feed Sewing Machine GC18365 Series Specifications

Model

GC18365M-L

GC18365M-R

GC18365-L

GC18365-R

Number of Needle

1-needle

Max.Sewing Speed

1600SPM

Post Bed Height

265mm

443mm

Post Bed to the Needle

Left

Right

Left

Right

Hook

Small vertical axis rotary hook

Max.Stitch Length

9mm

Max.Lift of the Presser Foot

16mm

Needle(Standard)

DPx17, 19-23#


Product Details

Post Bed Compound Feed Sewing Machine GC18365 Series Details

single needle post bed industrial sewing machine - KINGMAX
