Post Bed Industrial Sewing Machine GC18360 Series

GC18360-L   1-needle, 360 degree, left post bed lockstitch sewing
                      machine
GC18360-R   1-needle, 360 degree, right post bed lockstitch sewing
                      machine

  • GC18360-L/R
  • KINGMAX
  • One Needle
  • Compound feed with the walking foot
  • 800
Availability:

Product Descriptions

Post Bed Industrial Sewing Machine GC18360 Series Descriptions

These two machines are single needle, 360 degree rotation, post bed, compound feed with walking foot, industrial sewing machine. Both of these two machines have the large rotary hook and large bobbin, the arc bed is joined with the post-bed based on the center of axis for 360 degree direction, which can be moved manually free for the special corner sewing, powerful and effective compound feed with the walking foot for the constant stitch and trouble-free material feed, large working space under the arm for the large workpieces, high needle bar stroke and high foot lift, safety clutch and automatic lubrication system, both the left and right post bed as the option. Suitable for sewing medium to heavy weight materials, such products as bags, suitcases, wallets and other leather products etc.

Features

Post Bed Industrial Sewing Machine GC18360 Series Features

  • 360 degree rotation, post-bed, industrial sewing machines.

  • Free movement manually for the different unique shape products.

  • The safety clutch device prevents the hook damage.

  • Both the left and right post bed as the option.

  • Very good post-bed machines for the bag manufacturers.

Specifications

Post Bed Industrial Sewing Machine GC18360 Series Specifications

Model

GC18360-L

GC18360-R

Number of Needle

1-needle

Max.Sewing Speed

800SPM

Diameter of the Post Bed

54mm

Post Bed Height

443mm

Inside Height of Cured Post Bed

268mm

Inside Length of Cured Post Bed

180mm

Max.Stitch Length

8mm

Max.Lift of the Presser Foot

16mm

Needle

DPx17, 19-23#


Product Details

Post Bed Industrial Sewing Machine GC18360 Series Details

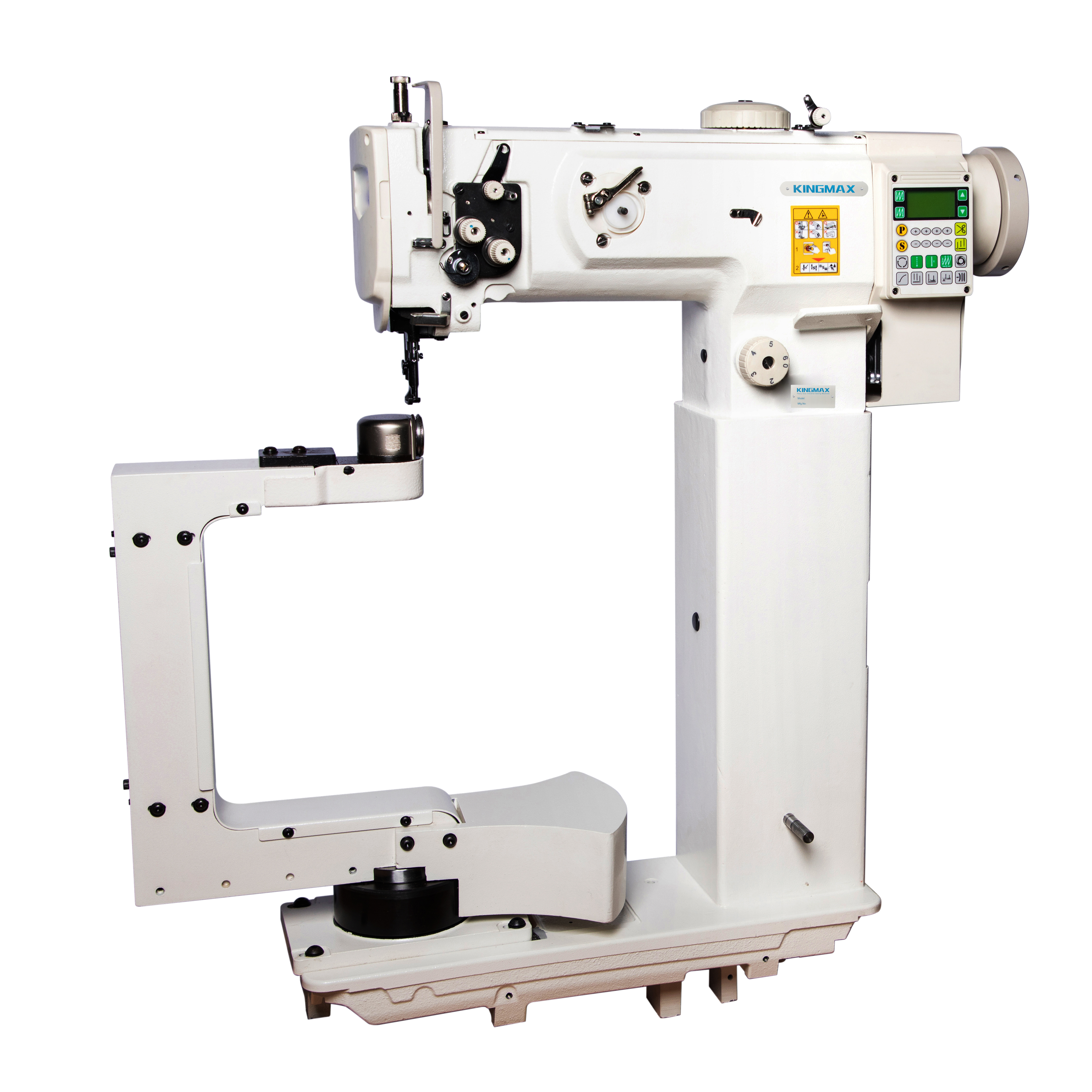

single needle post bed industrial sewing machine - KINGMAX
