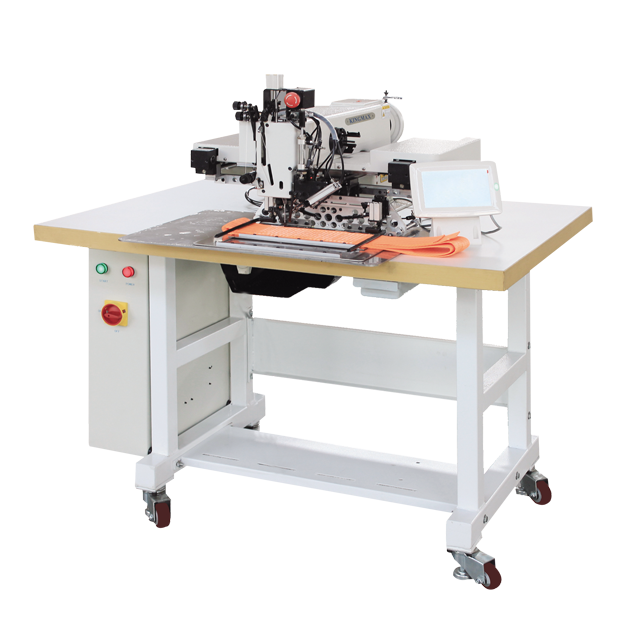

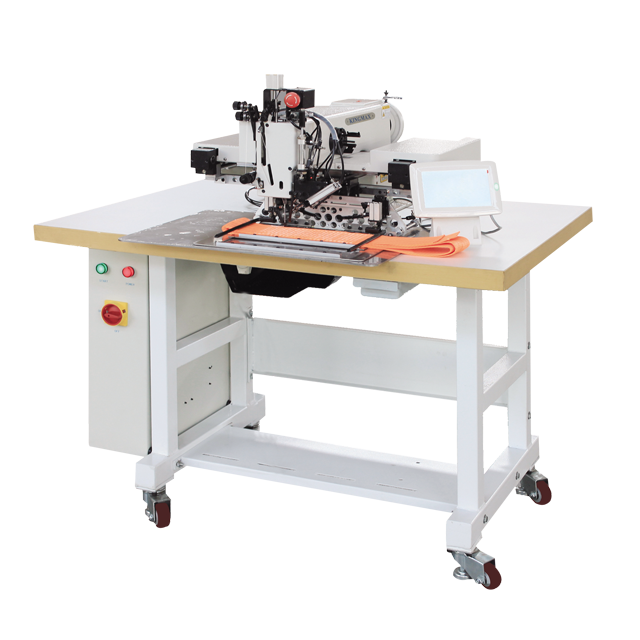

Computerized Pattern Sewing Machine PSM-3020 Series

Computerized Pattern Sewing Machine PSM-3020 Series Descriptions

This series machines are the extra heavy duty, large barrel shuttle hook, computerized pattern sewing machines with the thick thread. The simple, stable and powerful system with high torque servo motor, bridge type feeding structure allows the large working space under the long arm machine head, the touchable panel with the input punction and USB port, high needle bar stroke with the high intermediate presser foot lift(22mm), the emergency stop for quick stop and re-start just in case, free pattern edited software, the hot knife(the thread burning device) as the option. Also, PSM-6020(sewing area: 600x200mm) available(special order). Suitable for sewing heavy duty and extra heavy duty products with the thick thread, such as webbing, heavy leather products, lifting slings, belts, gun holster, tools boxes etc.

Computerized Pattern Sewing Machine PSM-3020 Series Features

• Large shuttle hook with the large bobbin and thick thread.

• The max. intermediate presser foot lift can up to 22mm.

• The touchable panel with the input function.

• The hot knife(thread burning device)as the option.

• The special heavy duty and extra heavy duty pattern sewing machines for the cargo slings, safety belts, gun  holster, tools boxes etc.

Computerized Pattern Sewing Machine PSM-3020 Series Specifications

Computerized Pattern Sewing Machine PSM-3020 Series Details
