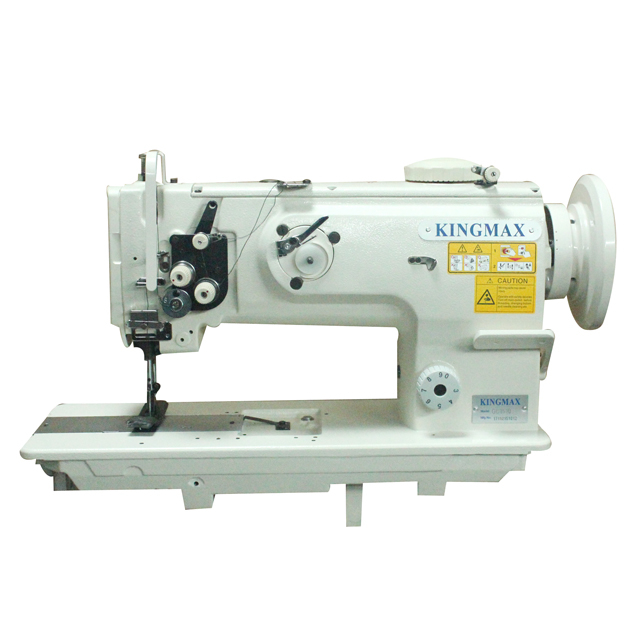

Safety Clutch Sewing Machine GC1500 Series

GC1508-NS   1-needle, compound feed, industrial sewing machine
GC1508-NH   1-needle, compound feed, heavy duty,
industrial sewing
                       machine
GC1510         1-needle, compound feed, auto lubrication, industrial
                        sewing machine
GC1560         2-needle, compound feed, industrial sewing machine
  • GC1500 Series
  • KINGMAX
  • Single/Double Needle
  • Compound Feed
  • 2500
Availability:

Product Descriptions

Safety Clutch Sewing Machine GC1500 Series Descriptions

These series machines are high speed, single & two needle, compound feed with walking foot, flat bed sewing machine. GC1508-NS is the basic single needle industrial sewing machine, GC1508-NH is the heavy duty version triple feed walking foot sewing machine, GC1510 is the automatic lubrication sewing machine, GC1560 is the double needle, automatic lubrication, compound feed with walking foot sewing machine. All of them have the double-capacity vertical axis rotary hook and large bobbin, the rectangular feeding motion prevents stitch gathering, the alternative vertical movement mechanism, controlled by the top dial, prevents the irregular and consistent stitches, dual tension mechanism, built-in bobbin winder, safety clutch by button prevents the hook damage during the sewing. The air foot lift, air back tacking and the synchronized puller as the option. Suitable for sewing medium to heavy weight materials, such as automobile upholstery(car mats etc), tents, bags, sofa, tarpaulins as well as other leather products etc.

Features

Safety Clutch Sewing Machine GC1500 Series Features

  • High speed, 1-needle, medium to heavy weight flat bed industrial sewing machine.

  • Large vertical axis hook and large bobbin.

  • The safety clutch by button prevents hook damage.

  • The air foot lift, air back tacking and the synchronized puller as the option.

  • Very popular medium to heavy weight compound feed with walking foot sewing machines for the most leather products factory.

Specifications

Safety Clutch Sewing Machine GC1500 Series Specifications

Model

GC1508-NS

GC1508-NH

GC1510

GC1560

Number of Needle

1 needle

2-needle

Max.Sewing Speed

2500SPM

Max.Stitch Length

9mm

10mm

9mm

9mm

Max.Lift of the Presser Foot

16mm

Hook

Double capacity vertical axis hook

Safety Clutch

Yes

Needle Gauge

none

6.4,7.9,9.5mm

Needle(Standard)

DPx17, 19-23#


Product Details

Safety Clutch Sewing Machine GC1500 Series Details

double needle sewing machine -KINGMAX
