1-needle Triple Feed and Walking Foot Cylinder Bed Sewing Machine 1341 Series

  • GC1341-SC-BH

  • KINGMAX

  • One Needle

  • Compound feed with the walking foot

  • 2000

Availability:

Product Descriptions

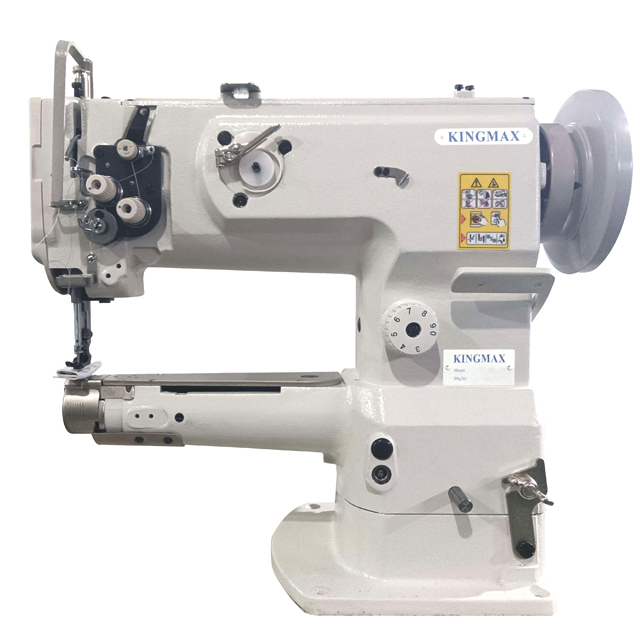

Single Needle, Cylinder Bed Sewing Machine GC1341-SC-BH Descriptions

This is one high speed, single needle, compound feed with walking foot, cylinder bed sewing machine. Small cylinder arm (50mm diameter), equipped with the large horizontal axis hook and large bobbin, which good for the free movement during the sewing. The compound feed with the walking foot assures the consistent smooth seam quality, even on the multi-layers materials, the small diameter cylinder is good sewing for the sharp curves, long stitch length, high foot lift. Suitable for sewing medium to heavy weight materials, such as bags, shoes and small size products, especially for the tubular shape products.

Features

Single Needle, Cylinder Bed Sewing Machine GC1341-SC-BH Features

  • High speed, 1-needle, cylinder bed industrial sewing machine.

  • Large horizontal rotary hook and large bobbin.

  • The diameter of the small cylinder is only 50mm.

  • Long stitch length and high foot lift.

  • Very good small cylinder bed machines for the common bags and shoes factories.


Specifications

Single Needle, Cylinder Bed Sewing Machine GC1341-SC-BH Specifications

Model

GC1341-SC-BH

Number of Needle

1 needle

The Diameter of the Cylinder

50mm

Max.Sewing Speed

2000SPM

Max.Stitch Length

9mm

Max.Lift of the Presser Foot

16mm

Hook

Large horizontal axis hook

Lubrication System

Automatic

Needle(Standard)

DPx17


Product Details

Single Needle, Cylinder Bed Sewing Machine GC1341-SC-BH Details

cylinder bed compound feed sewing machine - KINGMAX
