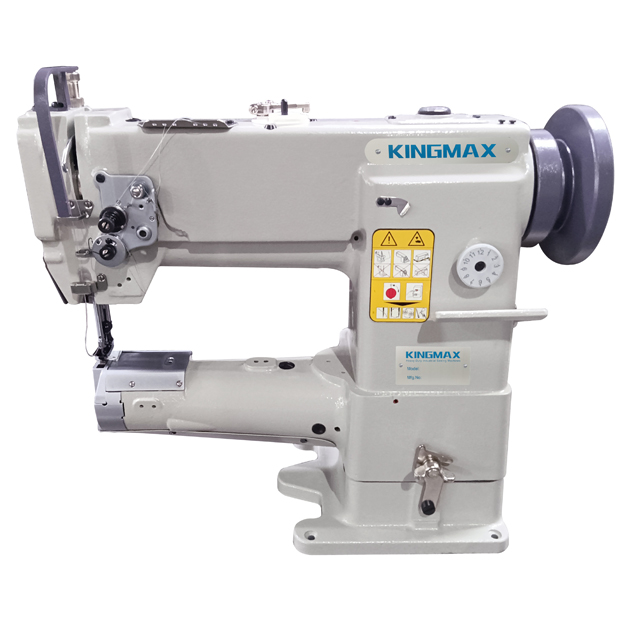

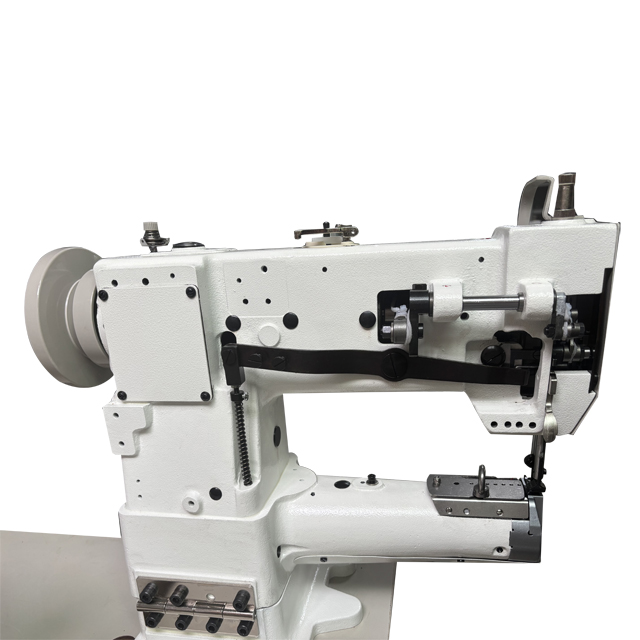

GC2268 single needle cylinder bed sewing machine is one regular high speed compound feed with walking foot lockstitch industrial sewing machine, which developed from the flat bed machine GC20618 series machines. With the high take up lever stroke(61.50mm) and needle bar stroke(33.40mm), this cylinder bed walking foot sewing machine can realize the max.stitch length up to 9mm, even 11mm(the reverse stitch is not consistent at 11mm stitch length), the max.foot lift can up to 15mm by knee(16mm by air).
GC2268-BH cylinder bed compound feed walking foot sewing machine with large hook is developed from regular GC2268, but with the extra large vertical rotary hook with 28mm bobbin, which means this large hook cylinder bed sewing machine has the obvious higher working efficiency with more bobbin thread as we know.
Both of these two models are cylinder bed medium to heavy weight lockstitch industrial sewing machine, which mainly designed for production of luggage case, bags, wallets and luggage bag, car seats, cushions and more, especially for the edge seaming on luggage bags with very good performance.
