Single Needle Industrial Sewing Machine GA-8&28BL-15&20

GA-8BL-15    1-needle, 15" long arm, industrial sewing machine
GA-28BL-15  2-needle, 15" long arm, industrial sewing machine
GA-8BL-20    1-needle, 20" long arm, industrial sewing machine
GA-28BL-20  2-needle, 20" long arm, industrial sewing machine
  • GA-8&28BL-15&20
  • KINGMAX
  • One&Two Needle
  • Compound feed with the walking foot
  • 1200&1500
Availability:

Product Descriptions

Single Needle Industrial Sewing Machine GA-8&28BL-15&20 Descriptions

These series machines are high speed, 1 & 2 needle, long arm, compound feed with walking foot, flat bed, extra heavy duty industrial lockstitch sewing machines with the thick thread. Both GA-8BL-15 and GA-28BL-15 are 15 inch long arm sewing machines, GA-8BL-20 and GA-28BL-20 are 20 inch long arm machines, GA-8BL-15&20 are the single needle triple feed sewing machines, GA-28BL-15&20 are the double needle triple feed sewing machines. These machines have the extra large vertical axis rotary hook and large bobbin, automatic hook lubrication, built-in bobbin winder, belt transmission, safety clutch by button prevents the hook damage during the sewing, the compound feed with walking foot assures the machine stitch the multi-layers materials smoothly and stably, consistent and perfect seam, large working space under the arm. The synchronized rear puller, air foot lift and back tacking as the option. Suitable for sewing heavy duty to extra heavy weight materials with the thick thread, such products as tents, truck covers, furniture upholstery, cargo slings, safety belts, canvas, vinyl, bags etc.

Features

Single Needle Industrial Sewing Machine GA-8&28BL-15&20 Features

  • 15 inch and 20 inch, extra heavy duty sewing machines with thick thread.

  • Extra large axis rotary hook and large bobbin.

  • Automatic hook lubrication.

  • The synchronized rear puller, air foot lift and back tacking as the option.

  • Very good walking foot sewing machines for the canvas, vinyl, leather, synthetics, and various coated, laminated, and rubberized fabric.

Specifications

Single Needle Industrial Sewing Machine GA-8&28BL-15&20 Specifications

Model

GA-8BL-15

GA-28BL-15

GA-8BL-20

GA-28BL-20

Number of Needle

1

2

1

2

Max.Sewing Speed

1500SPM

1200SPM

1500SPM

1200SPM

Max.Stitch Length

10mm

Max.Lift of the Presser Foot

24mm

Working Space

381x153mm

508x153mm

Hook

Extra large vertical axis rotary hook

Needle Gauge

None

6.4,7.9,9.5,12.70mm

None

6.4,7.9,9.5,12.70mm

Needle

DYx3


Product Details

Single Needle Industrial Sewing Machine GA-8&28BL-15&20 Details

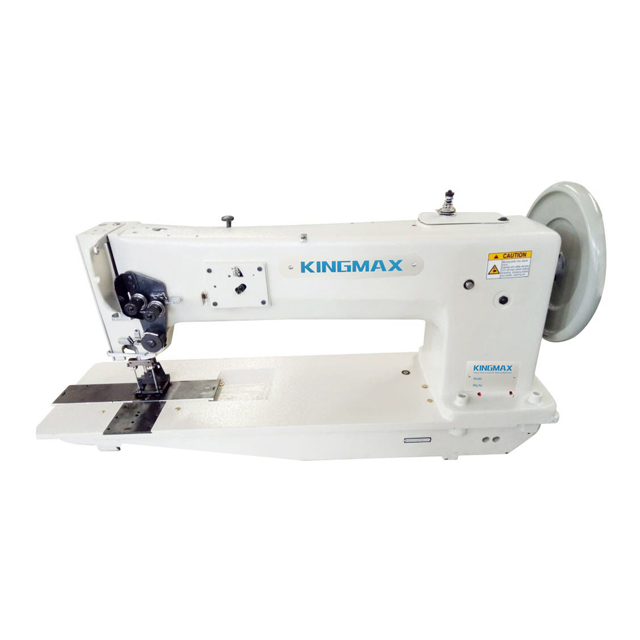

compound feed with walking foot industrial sewing machine - KINGMAX
