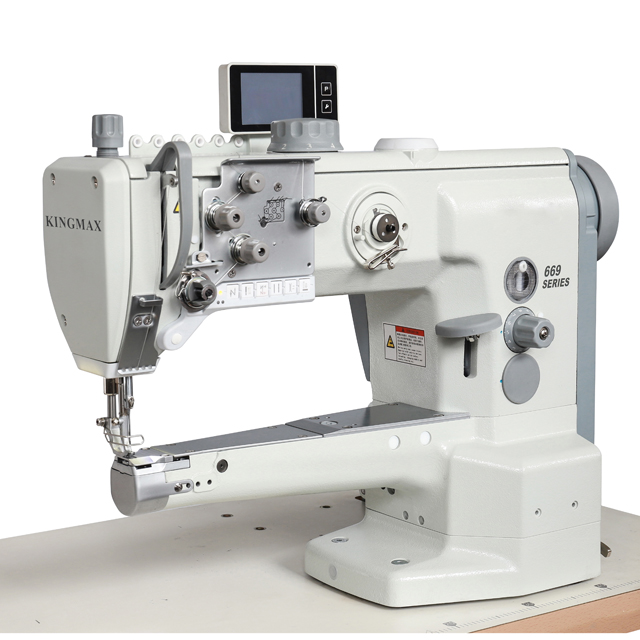

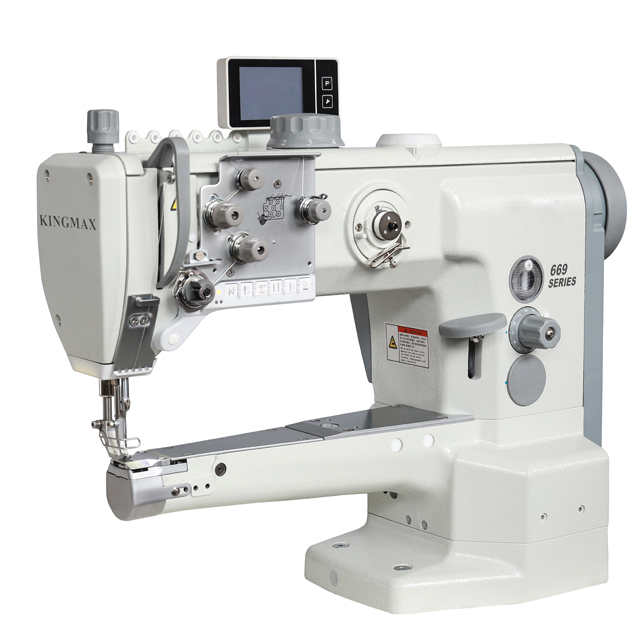

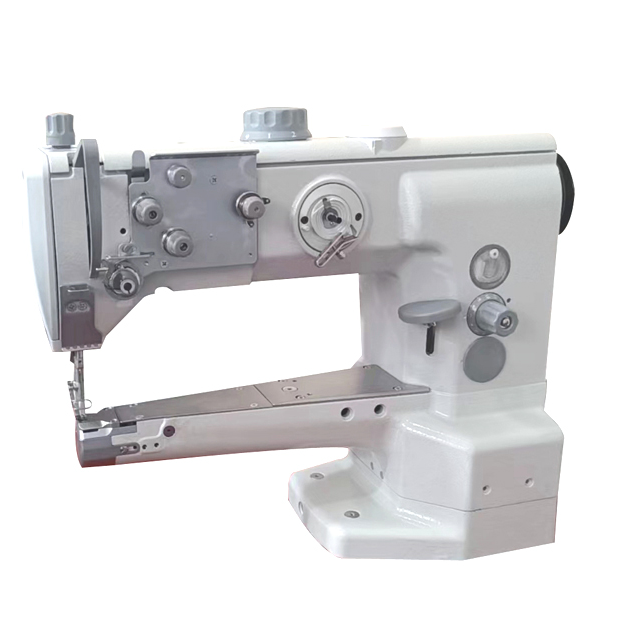

Single Needle Compound Feed and Walking Foot Cylinder Bed Sewing Machine 669 Series



  • GA669-110126

  • KINGMAX

  • Single Needle

  • Compound feed with the walking foot

  • 3000

Availability:

Product Descriptions

Single Needle Lockstitch Cylinder Bed Sewing Machine GA669-110126 Description

This is one high speed, single needle, cylinder bed, compound feed with walking foot lockstitch sewing machine, which is the best cylinder bed walking foot machine with the large horizontal rotary hook in the global market at present. The powerful and effective feeding system with the bottom feed, needle feed and walking foot guarantees the material smooth feeding when sewing different thickness masteries, the max. presser foot lift up to 20mm and large working space under the arm facilitates the sewing large tubes., also with the good view when operation. The small slime cylinder arm (50mm diameter) equipped with the large horizontal axis hook and large bobbin, small diameter cylinder is good sewing for the sharp curves, as well as the difficulty sewing processes like assembly and binding operations and decorative stitching on small leather goods and or tubular workpieces. Suitable for sewing medium to heavy weight materials, such as leather bags, wallets, holsters and other small size products, especially for the tubular shape products.

669 CODE DIAGRAM


Features

Single Needle Lockstitch Cylinder Bed Sewing Machine GA669-110126 Features

  • Large horizontal axis rotary hook and large bobbin.

  • 50mm slim machine arm diameter.

  • High speed cylinder bed walking foot sewing machine.

  • Quick stroke adjustment by dial activated and by knee

  • Edge roller guide and binder are optional.


Specifications

Single Needle Lockstitch Cylinder Bed Sewing Machine GA669-110126 Specifications

Model

GA669-110126

GA669-111126

Number of Needle

1 needle

The Cylinder Diameter

50mm

Max.Sewing Speed

3000SPM

Max.Stitch Length

9mm

Max.Lift   of the Presser Foot

20mm

Auto Thread Trimmer

None

Yes

Hook

Large   horizontal axis rotary hook(26mm)

Lubrication System

Automatic

Needle(standard)

DPx35

Working Space

335x125mm


Product Details

Single Needle Lockstitch Cylinder Bed Sewing Machine GA669-110126 Details

Single needle compound feed and walking foot cylinder bed
