Single Needle Long Arm Sewing Machine GA204-762

GA204-762 1-needle, 30" arm length, compound
                    feed(thick thread)
  • GA204-762

  • KINGMAX

  • One Needle

  • Compound Feed

  • 800

Availability:

Product Descriptions

Single Needle Long Arm Sewing Machine GA204-762 Descriptions

This is one single needle, large barrel shuttle hook, extra heavy duty,30 inch(762mm) long arm, flat bed, industrial lockstitch sewing machine with the thick thread, which developed from the regular GA204-370 machine. It has the large barrel shuttle hook and large bobbin, the front handle wheel for the easy and fast needle position movement, ball type reverse lever, long needle bar stroke and long stitch length(12mm), high foot lift(22mm), the compound feeding structure with the walking foot assures the machine stitch the multi-layers materials smoothly and stably, consistent and perfect seam, extra large working space under the arm for the sizeable workpieces, the special designed for processing the extreme thick thread and material thicknesses of heavy weight materials. The air foot lift and back tacking as the option. Suitable for sewing heavy duty to extra heavy weight materials with the thick thread, such products as canvas, tents, cargo slings, safety belts, bags, tarpaulins, technical textiles etc.


Features

Single Needle Long Arm Sewing Machine GA204-762 Features

  • 1-needle, 30 inch long arm compound feed sewing machines with thick thread.

  • Large barrel shuttle hook and large bobbin.

  • Long stitch length and high foot lift, extra large working space under the arm.

  • The air foot lift and back tacking as the option.

  • One special long arm extra heavy duty sewing machines for the technical textiles manufactures.

Specifications

Single Needle Long Arm Sewing Machine GA204-762 Specifications

Model

GA204-762

Number of Needle

1 needle

Max.Sewing Speed

800SPM

Max.Stitch Length

12mm

Max.Lift of the Presser Foot

22mm

Working Space

762x185mm

Hook

Large barrel shuttle hook

Needle(Standard)

DYx3


Product Details

Single Needle Long Arm Sewing Machine GA204-762 Details

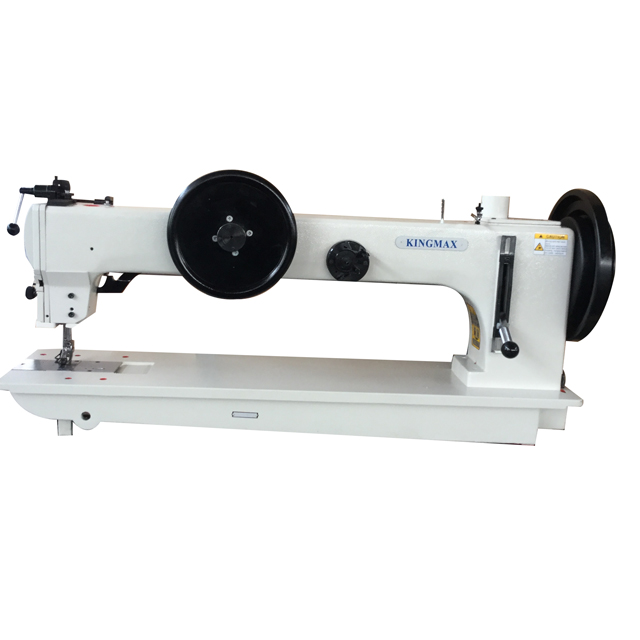

compound feed long arm industrial sewing machine - KINGMAX
