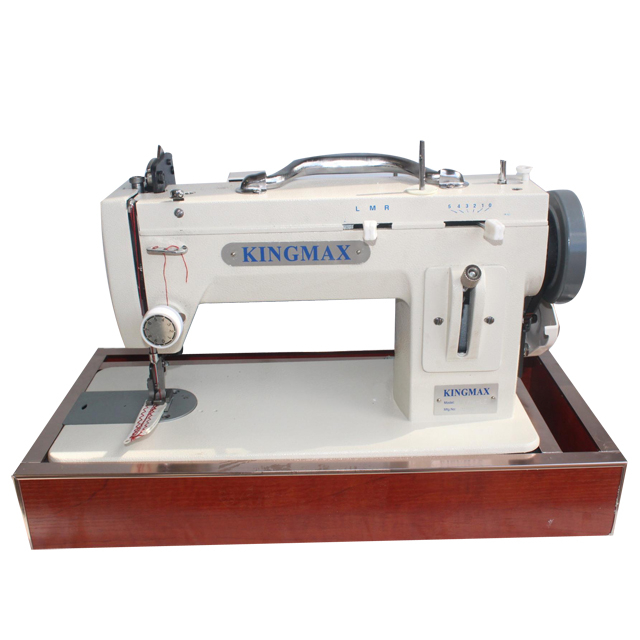

Top and Bottom Feed Sewing Machine GA106 Series

GA106      7" Portable walking foot straight sewing machine
GA106-Z   7" Portable walking foot straight stitch and zigzag
                  sewing machine
GA106-L    9" Portable walking foot straight sewing machine
GA106-LZ  9" Portable walking foot Straight stitch and zigzag
                   sewing machine
  • GA106 Series

  • KINGMAX

  • One Needle

  • Top and Bottom Feed

  • 800

Availability:

Product Descriptions

Top And Bottom Feed Sewing Machine GA106 Series Descriptions

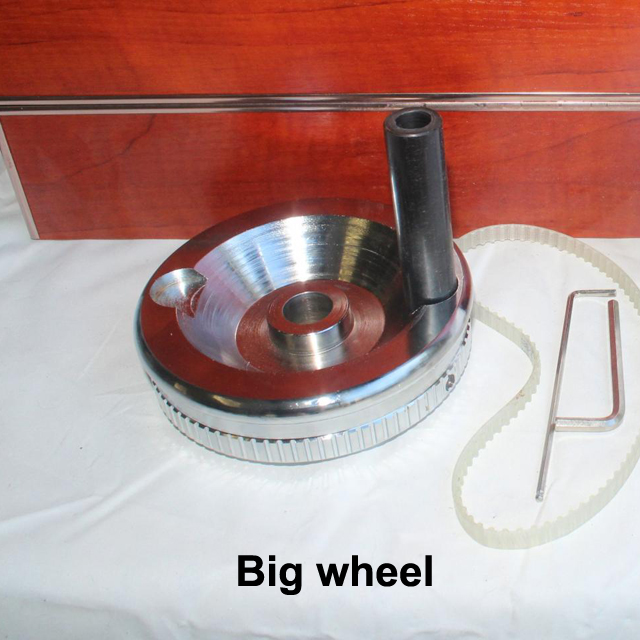

These series machines are the single needle, 7 inch and 9 inch arm length, top and bottom feed with walking foot, mini industrial lockstitch sewing machines. Both GA106 and GA106-Z are 7 inch arm length, portable walking foot industrial sewing machines, GA106-L and GA106-LZ are the 9 inch, portable industrial sewing machines with the walking foot. GA106 and GA106-L are the straight stitch sewing machine, GA106-Z and GA106-LZ are the straight stitch and zigzag sewing machines. All of them have the top and bottom feed with walking foot, oscillating shuttle hook, link-type thread take-up lever, attached mini motor with the built-in gear speed reducer, reverse lever mechanism, heavy duty carrying-on handle. Three different materials (plastic, wooden and aluminum) carrying cases as the option, 10 different feed and larger handle wheel available as the option. Suitable sewing for light material to medium materials, such as boats, sun umbrella, leather, vinyl, upholstery, synthetics, canvas, and various coated and laminated products.

Features

Top And Bottom Feed Sewing Machine GA106 Series Features

  • 1-needle, portable walking foot industrial sewing machine.

  • Both straight stitch and zigzag stitch available depends on the different subclass.

  • The oscillating shuttle hook.

  • Strong mini servo motor with the built-in speed reducer.

  • Very popular and good mini portable industrial sewing machines for the boats repair and furniture(sofa)repair.

Specifications

Top And Bottom Feed Sewing Machine GA106 Series Specifications

Model

GA106

GA106-Z

GA106-L

GA106-LZ

Number of Needle

1 needle

Max.Sewing Speed

800SPM

Arm Length

7 inch

9 inch

Stitch Type

Straight

Straight&zigzag

Straight

Straight&zigzag

Max.Stitch Length

6mm

Max.Lift of the Presser Foot

10m

Hook

Oscillating shuttle hook

Needle

DPx17, 18-21#


Product Details

Top And Bottom Feed Sewing Machine GA106 Series Details

portable industrial sewing machine with walking foot - KINGMAX
