Name: China 1-needle Compound Feed and Walking Foot Heavy Duty and Extra Heavy Duty Cylinder Bed Sewing Machine 205-370 Manufacturers Suppliers Factory - KINGMAX
Brand: KINGMAX
SKU: 263940874

Description

Technical Parameters

Products Features

One needle, heavy duty and extra heavy duty, cylinder bed industrial sewing machines.
Large barrel shuttle hook and large bobbin.
High foot lift and long stitch length.
Two different arm lengths for the different sized workpieces.
Very good and popular cylinder bed machines for the furniture manufacturer.

Products Descriptions & Details

These two machines are single needle, heavy duty and extra heavy duty, compound feed with walking foot, cylinder bed sewing machines. Both of them have the large barrel shuttle hook and large bobbin, the compound feed with the walking foot assures the consistent smooth seam quality, even on the multi-layers materials, long stitch length, large needle bar stroke, high foot lift, extra large hand wheel, the optimized inside structure make machines work steadily, low noise and ease maintenance. Both the flip material guide and synchronized binder available(special order), the air foot lift and air back tack as the option. Suitable for sewing heavy duty and extra heavy duty materials with the thick thread, such as saddlery, harness, sofa, webbing, slings etc.

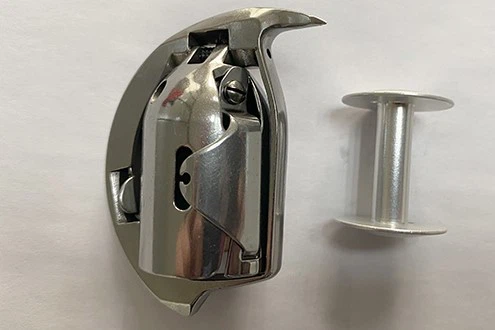

Large Barrel Shuttle Hook

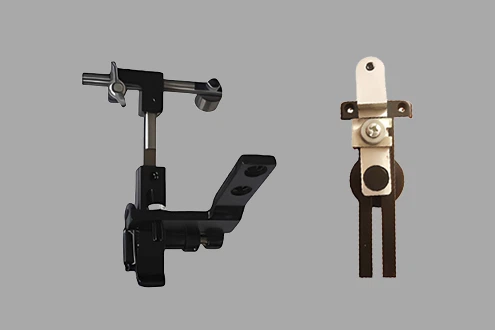

Roller Guides

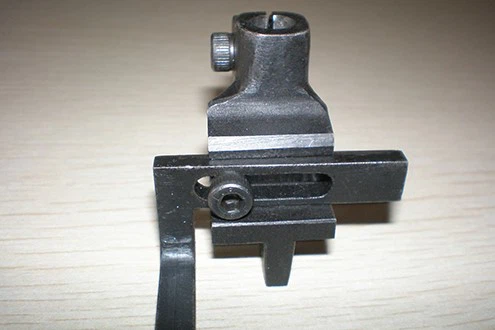

Adjusted Feet

Products Specifications

Model	GA205-370
Number of Needle	1 needle
Arm Length	315mm
Max.Sewing Speed	800SPM
Max.Stitch Length	10mm
Max.Lift of the Presser Foot	20mm
Hook	Large barrel shuttle hook
Lubrication System	Manual
Needle(Standard)	DYx3
