Description

Technical Parameters

Products Features

1-needle, 30 inch long arm compound feed sewing machines with thick thread.
Large barrel shuttle hook and large bobbin.
Long stitch length and high foot lift, extra large working space under the arm.
The air foot lift and back tacking as the option.
One special long arm extra heavy duty sewing machines for the technical textiles manufactures.

Products Descriptions & Details

This is one single needle, large barrel shuttle hook, extra heavy duty,30 inch(762mm) long arm, flat bed, industrial lockstitch sewing machine with the thick thread, which developed from the regular GA204-370 machine. It has the large barrel shuttle hook and large bobbin, the front handle wheel for the easy and fast needle position movement, ball type reverse lever, long needle bar stroke and long stitch length(12mm), high foot lift(22mm), the compound feeding structure with the walking foot assures the machine stitch the multi-layers materials smoothly and stably, consistent and perfect seam, extra large working space under the arm for the sizeable workpieces, the special designed for processing the extreme thick thread and material thicknesses of heavy weight materials. The air foot lift and back tacking as the option. Suitable for sewing heavy duty to extra heavy weight materials with the thick thread, such products as canvas, tents, cargo slings, safety belts, bags, tarpaulins, technical textiles etc.

1 Needle

Large Barrel Shuttle Hook

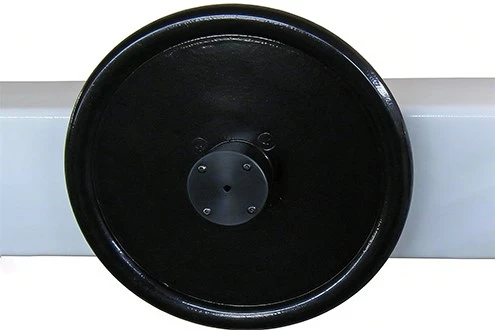

Large Midwheel

Products Specifications

Model	GA204-762
Number of Needle	1 needle
Max.Sewing Speed	800SPM
Max.Stitch Length	12mm
Max.Lift of the Presser Foot	22mm
Working Space	762x185mm
Hook	Large barrel shuttle hook
Needle(Standard)	DYx3
