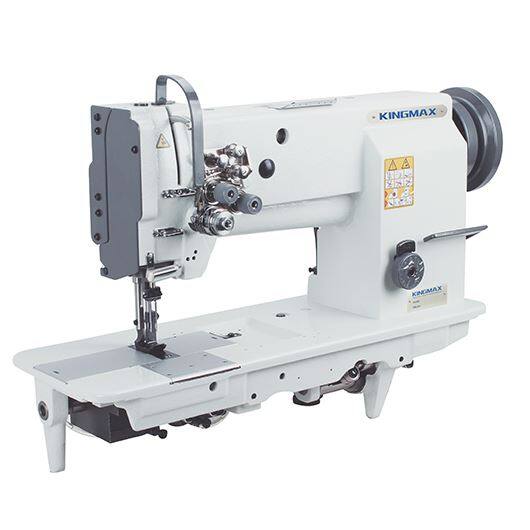

Name: China GC20618 Series 1&2 Needle Compound Feed and Walking Foot Lockstitch Sewing Machines Manufacturers Suppliers Factory - KINGMAX
Brand: KINGMAX
SKU: 279806774

Description

Technical Parameters

Products Features

Compound feed with walking foot feeding mechanism.
Large vertical axis hook and large bobbin.
High foot lift(16mm) and long stitch length(10mm).
With safety clutch device.
Automatic lubrication system.
2-needle machine can work as the single needle machine.

Products Descriptions & Details

This series machines are high speed 1 and 2 needle compound feed and walking foot lockstitch sewing machines, which are the most popular medium to heavy weight material industrial lockstitch sewing machines in the global market by the stable quality and universal spare parts in the market. They adopt the bottom feed, needle feed and walking foot feeding mechanism, large vertical axis hook, high foot lift(16mm), long stitch length(10mm), automatic lubrication system, safety clutch device etc, stable quality at the consistent seam. Suitable for sewing medium to heavy weight materials such as leather, vinyl, upholstery, synthetics, canvas and various coated and laminated products, like belts, saddle bags, notebook covers, awnings, tents, luggage, sports and camping equipment, canvas and more.

Large Rotary Hook

Take Up Lever

Tension Plate

Products Specifications

Model	GC20618-1		GC20618-2
Number of Needle	1 needle		2-needle
Max.Sewing Speed	2000SPM
Max.Stitch Length	9mm	9mm
Max.Lift of the Presser Foot	16mm
Hook	Double capacity vertical axis hook
Safety Clutch	Yes
Needle Gauge	none			6.4,7.9,9.5mm
Needle(standard)	DPx17, 19-23#
