Name: China Top and Bottom Feed Heavy Duty Industrial Sewing Machine Manufacturers Suppliers Factory - KINGMAX
Brand: KINGMAX
SKU: 263934373

Description

Technical Parameters

Products Features

1-needle, flat bed, extra heavy duty sewing machines with thick thread.
Large barrel shuttle hook and large bobbin.
Long stitch length and high foot lift.
Large working space under the arm for the bulky workpieces.
One economical extra heavy duty industrial sewing for the sofa and safety products manufacturers.

Products Descriptions & Details

This is one single needle, top and bottom feed, large barrel shuttle hook, extra heavy duty, flat bed, industrial lockstitch sewing machine with the thick thread, simply, single needle thick thread sewing machine. It has the large barrel shuttle hook and large bobbin, ball type reverse lever, long needle bar stroke and long stitch length(12mm), high foot lift(22mm), the top walking foot and bottom feed dog make the machine feed the heavy weight material synchronously, consistent, and perfect seam, large working space under the arm, the bottom main shaft with the gear, low noise, and ease maintenance. Suitable for sewing heavy duty to extra heavy weight materials with the thick thread, such products as sofa, tents, bags, backpack, cargo slings, safety belts, as well as other technical textiles etc.

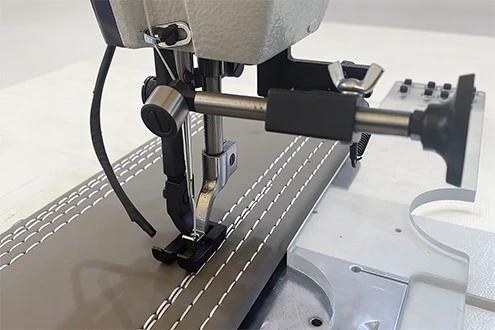

Material Guide

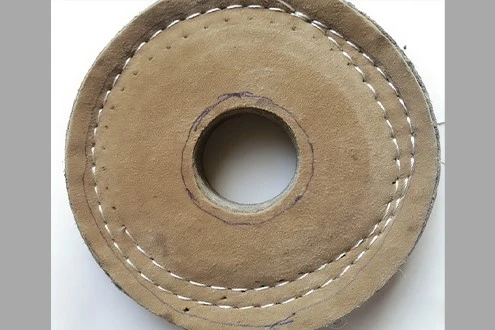

Stitch Sample

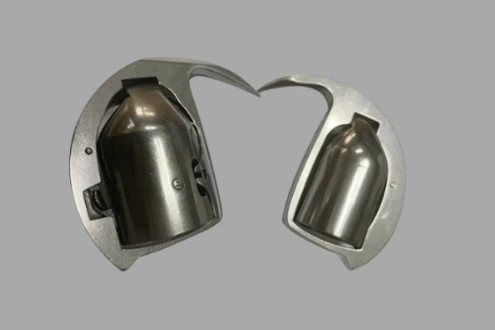

Regular&Large Shuttle Hooks

Products Specifications

Model	GB6-181
Number of Needle	1 needle
Max.Sewing Speed	800SPM
Max.Stitch Length	12m
Max.Lift of the Presser Foot	22mm
Feeding Structure	Top and bottom feed
Hook	Large barrel shuttle hook
Needle	7x250/300
