Name: China Large Size Auto Head Lift Cushion and Pillow Pattern Sewing Machine Manufacturers Suppliers Factory - KINGMAX
Brand: KINGMAX
SKU: 264200935

Description

Technical Parameters

Products Features

Split sewing machine head.
The max. foot lift can up to 150mm, the inside working length is 400mm under the arm.
The stable Dahao control system.
The touchable panel with the input function.
The special pattern sewing machines for sewing large size and thickness cushions, pads, bolster, beach mats etc.

Products Descriptions & Details

This is one special extra large size computerized pattern sewing machine, the special designed split long arm sewing machine head, which can be up and down controlled by the air system. The max. air foot lift can up to 150mm for the most thickness bulgy products, and the inside working length under the arm is 400mm. High speed(the max. speed can up to 2000SPM), the dry machine head(oil free-needle bar and take-up lever) equipped with the Dahao system, the bottom working stainless steel plate for the large sized articles, the touchable panel with the input function and USB port. The pattern edited software as the option, which can be installed at the laptop/computer to edit the complex pattern more quickly and easily. Mainly suitable for patterns sewing on the thickness and extra thickness products with the large size, special designed for sewing large size cushions, pads, bolster, beach mats etc.

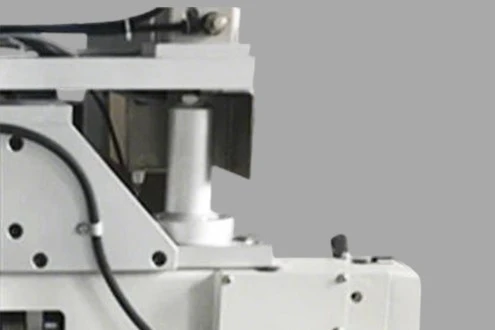

The Take-up Lever

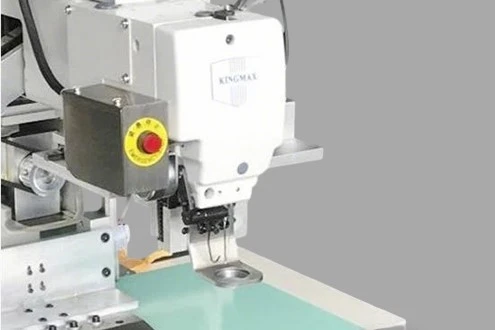

The 400mm Inside Working Length

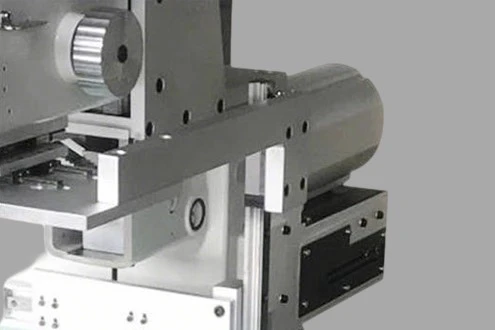

The Mechanical Component

Products Specifications

Model	GT2254
The Max. Sewing Speed	2000SPM
Hook	Standard hook
The Max. Foot Lift	150mm
The Max.Stitch Length	12.70mm
The Inside Working Length	400mm
Needle	DPx17 #18
