Products Features
- 200 basic standard patterns available(1-needle: 100patterns, 2-needle: 100patterns).
- Large barrel shuttle hook with the large bobbin.
- The cute small touchable panel operated simply and directly.
- The central guide device as the option as well as the top and bottom feed machine.
- One ideal sewing machine for ornamental in the furniture industry, especially one good sofa ornamental sewing machine at the furniture factory.
Products Descriptions & Details

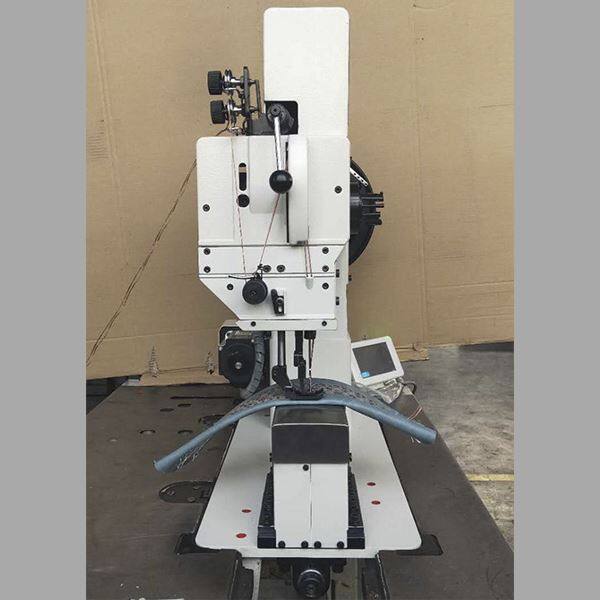

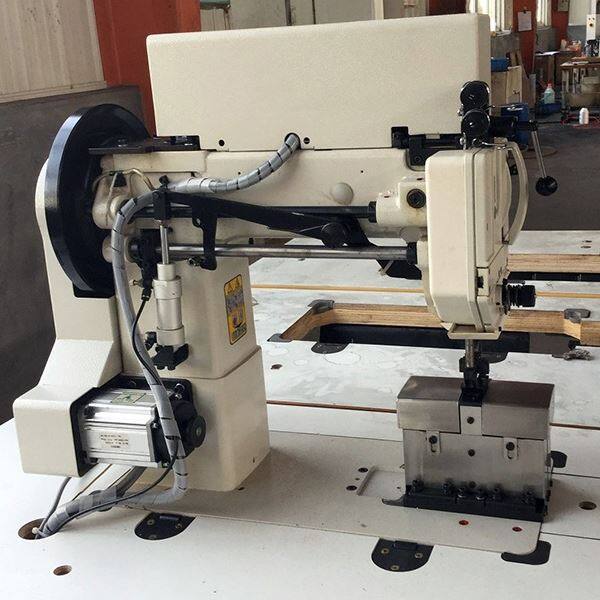

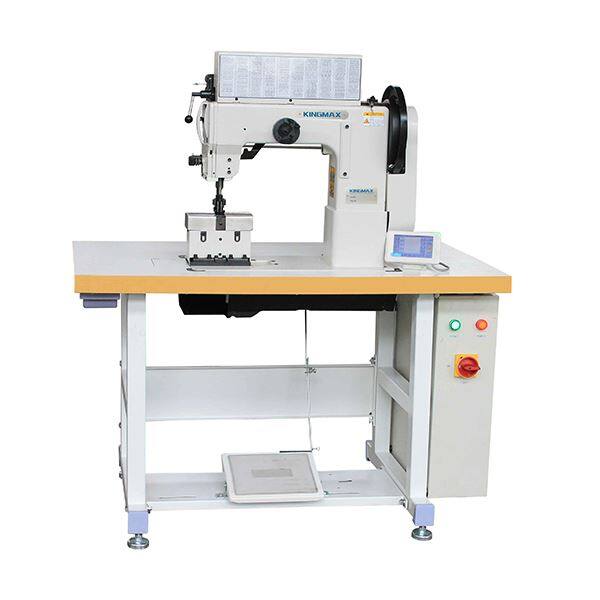

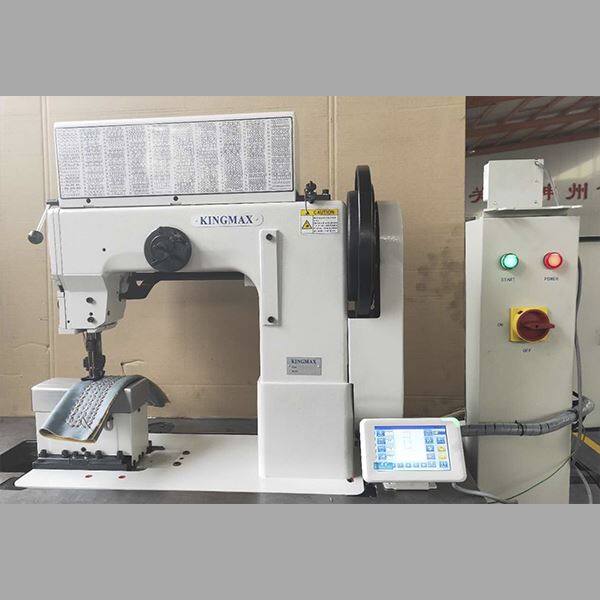

This is one post-bed, extra heavy duty,compound feed, computerized pattern sewing machine with the thick thread. It has the large barrel shuttle hook with the large bobbin,large hand wheel, high foot lift, large needle bar stroke, the small cute touchable panel with the simple input function, 1 and 2 needle controlled by the rotary needle bar for the ornamental & decorative sewing, 200 basic standard patterns (1-needle: 100 patterns, 2-needle: 100 patterns), and the extra pattern can be edited by the extra software. Both the central guide device and bottom & top feed version machine as the option. Suitable for sewing heavy duty and extra heavy duty materials with the thick thread, such products as sofa, leather furniture, car upholstery, bags etc.

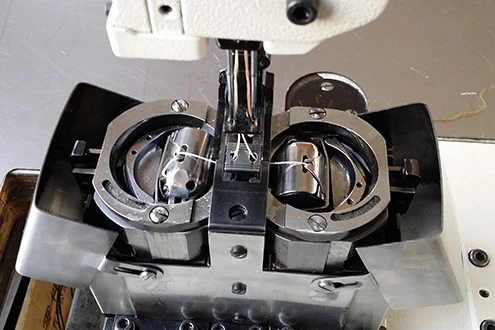

Two Shuttle Hooks
Sewn Sample
Patterns List
Products Specifications
|
Model |
GA204H-2A |
|
The Max.Sewing Speed |
500SPM |
|
Patterns |
200 patterns(1-needle:100patterns, 2-needle:100patterns) |
|
Hook |
The large barrel shuttle hook |
|
The Max.Needle Bar Stroke |
56mm |
|
The Max.Foot Lift |
22mm |
|
The Max.Stitch Length |
12mm |
|
The Needle Gauge |
6, 8, 10, 12mm |
|
Needle |
DYx3 #27 |
|
Working Space |
310x340mm |
|
The Post Height |
140mm |
