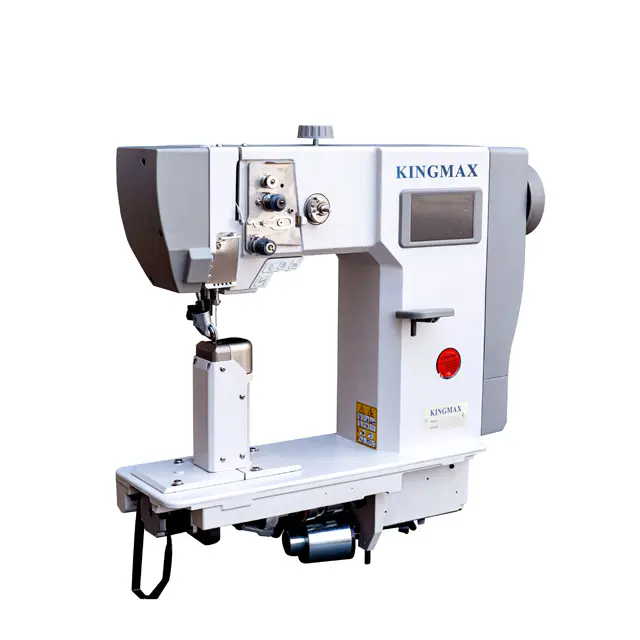

Name: China Direct-driven 1-needle Roller Feet Post Bed Shoes Sewing Machine Manufacturers Suppliers Factory
Brand: KINGMAX
SKU: 264208269

Description

Technical Parameters

Products Features

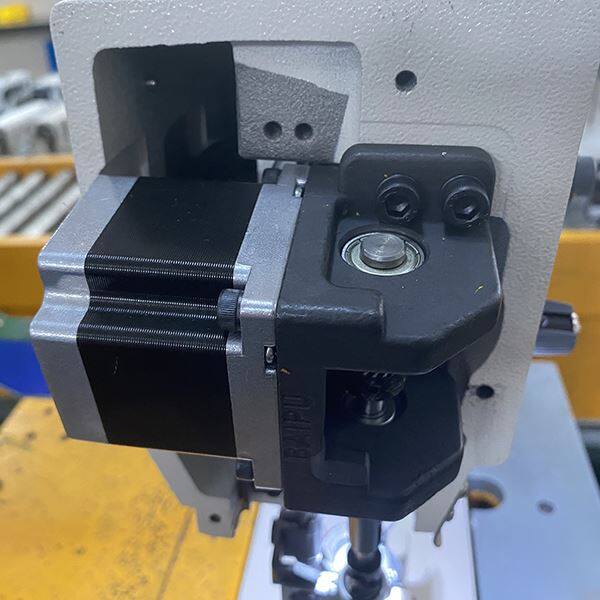

Direct-drive, high level, post bed shoes machines with the stepping motor.
Large vertical axis hook(26mm) and large bobbin.
Full automatic functions are electronic (no air supply needed).

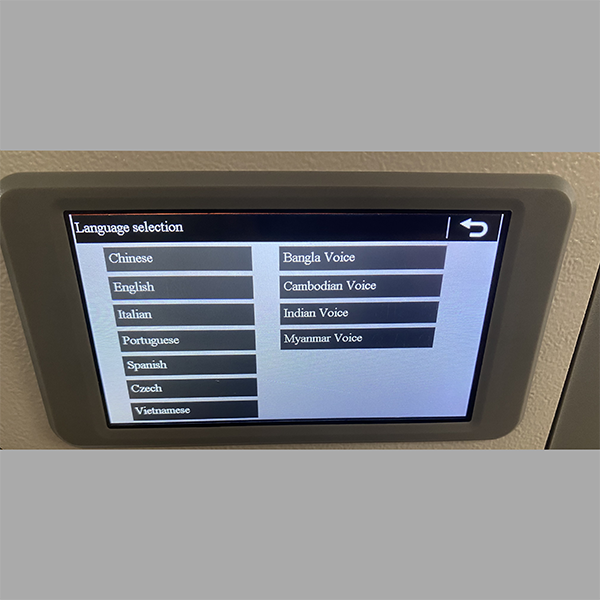

5 inch touchable voiced panel with the multi-language.
One very good high level post bed large hook shoes sewing machines for the most shoes factories.

Products Descriptions & Details

This is one high speed, single&double needle, full electronic, post-bed, top driven roller, wheel and needle feed, high level, shoes sewing machine. It has the large vertical axis rotary hook (26mm diameter) and large bobbin, automatic thread trimmer with the short threads ends trimming, auto foot lift and auto back tacking (all electronic, no air supply needed). The wheel feed, driven roller presser and needle feed are controlled by stepping motors,5 inch touchable voiced panel with the most popular languages, which also have the programming function, the stitch length be adjusted through the panel simple and fast, top dial for the presser foot adjustment, the multi-function button in ease reach with the LED light. It is suitable for sewing medium to heavy duty materials, such as leather products, bags, cases, backpack etc. Very good high level post bed sewing machine for shoes manufactures and factories, who produce high level leisure shoes, lady shoes, sport shoes, military shoes, boots, hiking shoes, safety shoes etc.

Roller Foot

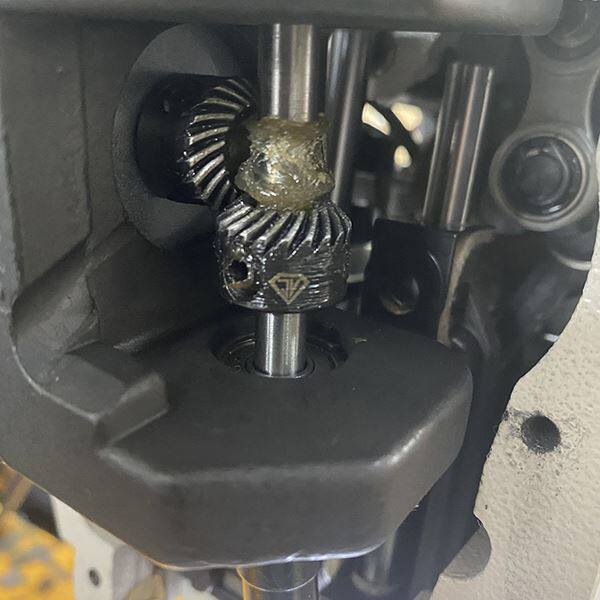

Small Large Hook

Stitch Sample

Products Specifications

Model	GT1592D-E	GT1592D-LE	GT1575D-E
Number of Needle	1 needle		2 needle
Max.Sewing Speed	3000SPM
Max.Stitch Length	7mm
Max.Lift of the Presser Foot	14mm
Hook	Standard rotary hook	Large axis rotary hook	Standard rotary hook
Needle(Standard)	DPx5
Working Space	245x275mm
