Name: China Walking Foot Zigzag Sewing Machine For Shoes Manufacturers Suppliers Factory - Wholesale Price - KINGMAX
Brand: KINGMAX
SKU: 286868752

Description

Technical Parameters

Products Features

Different feeding system can meet different sewing requirements.
Synchronized top and bottom material movement, preventing layer shifting and puckering.
High capacity horizontal rotary hook & bobbin.
Interchangeable cam stitch patterns.

Products Descriptions & Details

This heavy duty zigzag industrial sewing machine combines a walking foot feeding system with versatile zigzag stitching capabilities, specifically designed to meet the decorative and functional sewing demands of modern shoe manufacturing. These machines Includes three standard cams enabling programmable zigzag variations-1 step 2 points, 2 steps 3 points, and 3 steps 4 points zigzag-ideal for decorative topstitching, elastic attachment, and reinforcement seams on shoes. Suitable for zigzag, join and decorative sewing medium to heavy duty materials. Such as shoe upper, reinforcing stress points and seam finishing in boots, leather shoes, and safety footwear.

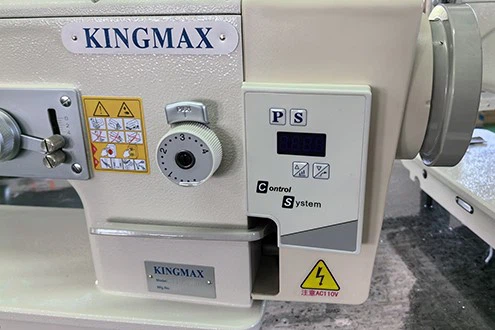

199 Panel

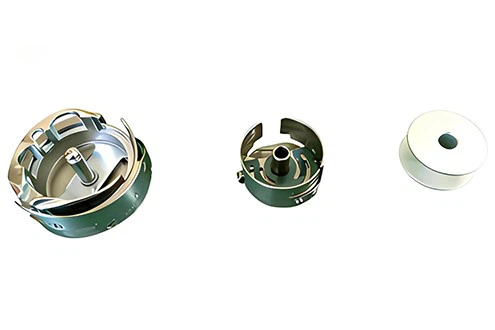

Hook, Bobbin Case&Bobbin

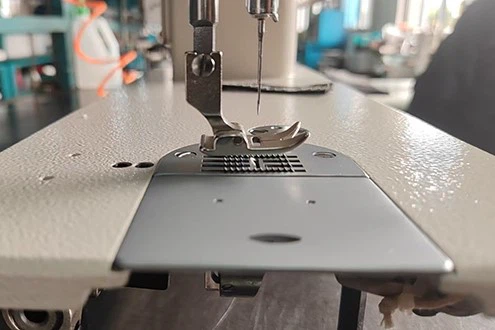

Bottom Feed

Products Specifications

Model	GT199	GT146	GT199/146-B	GT199-2
The Max. Sewing Speed	1700SPM
Stitch Patterns	1 step 2 points, 2 steps 3 points, 3 steps 4 points		1 step 2 points
The Max. Zigzag Width	10mm		13mm	4mm
The Max. Foot Lift	13mm
The Zigzag Stitch Length	5mm
Hook	Large horizontal axis rotary hook
Needle	DPx17 #14-22
