Name: China High Speed 1-needle Zigzag Sewing Machine 2284 Series Manufacturers Suppliers Factory - KINGMAX
Brand: KINGMAX
SKU: 264197607

Description

Technical Parameters

Products Features

High speed, 1-needle, lockstitch zigzag sewing machine.
The top built-in bobbin winder and reverse lever.
Both GT2280D-7 and GT2284D-7 are the direct-driven version machines with automatic thread trimmer.
Large hook and large bobbin.
One universal light and medium weight zigzag machines for the most garments manufactures/factories.

Products Descriptions & Details

This series machines are single needle, high speed, lockstitch industrial zigzag sewing machines. These machines equipped with the top built-in bobbin winder, reverse stitch lever, automatic lubrication system, presser foot adjustment attached the scale line as the standard. Both GT2280 and GT2280D-7 use the triangular cam which helps produce the beautiful one step and two points zigzag seams with consistency, GT2280D-7 is the direct-driven version two points zigzag machine with the automatic thread trimmer. GT2284 series machines with grooved cam have the straight stitch, one step two points zigzag stitch and three steps four points zigzag stitch, which controlled by the fingertip device, GT2284D-7 is the direct-driven two points and four points zigzag machine version with the automatic thread trimmer. Suitable for sewing light to medium weight materials with high-quality soft seams, such products as men's wear, lady's wear, jeans etc.

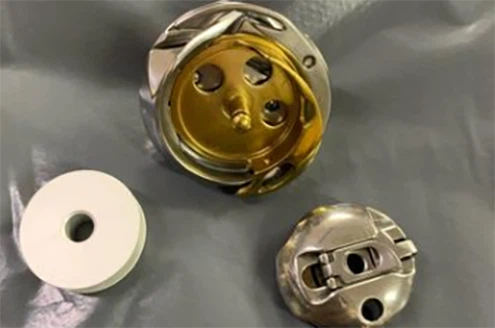

Hook&Bobbin

Feet, Needle Plate&Feed Dog

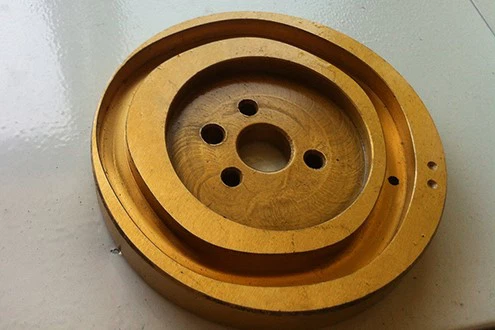

Cam

Products Specifications

Model	GT2280	GT2280D-7	GT2284	GT2284D-7
The Max. Sewing Speed	4500SPM
The Max. Zigzag Width	5mm
The Max. Foot Lift	10mm
The Inside Working Length	300mm
Hook	Large rotary hook
Needle	DPx5 #10-14
