In the industrial sewing sector, production efficiency and stitching quality are the core of a company's competitiveness. With the deepening integration of mechatronics, pneumatic control systems have gradually become a standard feature on modern industrial sewing machines. Among these, the pneumatic presser foot lifter and pneumatic reverse stitching are two fundamental yet critical automated functions that are fundamentally transforming manufacturing practices in the sewing industry. This article provides a comprehensive analysis from four dimensions: technical principles, core advantages, typical applications, and future trends.
1.Technical Principles: How Pneumatic Drives Change Sewing Operations
Traditional industrial sewing machines rely on manual knee‑control or hand‑control for lifting the presser foot, and operators manually pull a reverse lever for back‑tacking. The introduction of pneumatic technology fundamentally changes this paradigm.

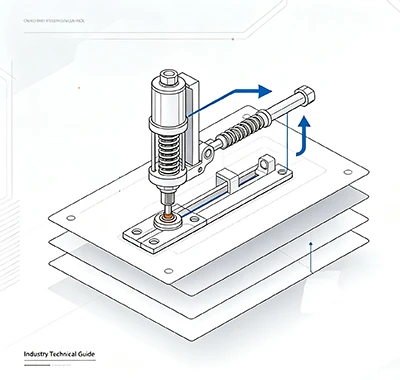

Pneumatic presser foot lifter operates by using compressed air to drive a cylinder. Taking a typical overlock machine as an example: the lifting cylinder is fixed at the rear of the machine housing, and the piston rod connects to a linkage that, through a lever mechanism and hook transmission, rotates the presser‑foot shaft to achieve precise lifting and lowering. In special machines like cylinder‑bed machines, the pneumatic lifter, through a combination of the presser‑foot cylinder, pressure‑adjusting shaft, and adjusting sleeve, not only automates the lifting action but also allows fine adjustment of presser‑foot pressure via a regulator valve. More advanced models adopt a combined cylinder design, where multiple independent air passages and piston rods within a single cylinder separately control the middle and outer presser feet, resulting in a more compact and efficient structure.
Pneumatic reverse stitching uses pneumatic mechanisms to change the feeding direction. A typical forward‑reverse mechanism consists of a cylinder, a connecting rod, and a stitch‑length lever spring stud. The cylinder drives the connecting rod, which swings the stitch‑length lever, thereby switching the feed dog between forward and reverse motion. This pneumatic device is usually mounted on the rear of the machine arm, enhancing stability and rigidity during back‑tacking operations.
2. Core Advantages: Doubling Efficiency and Quality
The value of pneumatic presser‑foot lifting and reverse stitching is evident at every step of production.
- Significant improvement in production efficiency
The pneumatic lifter eliminates the need for operators to bend down or use their knees repeatedly, drastically reducing auxiliary time for material changes and position adjustments. When combined with automatic thread trimming and automatic needle positioning, it enables fully automated sewing sequences. Many industrial sewing machines equipped with these pneumatic functions can boost productivity by over 30%.
- Marked reduction in operator fatigue
In traditional sewing, operators perform thousands of manual or knee‑operated presser‑foot and reverse‑lever actions every day. Pneumatic systems offload these repetitive tasks to the machine, greatly reducing physical strain. For example, several JUKI models have adopted the pneumatic lifter as standard, offering a presser‑foot lift height of up to 16 mm or more, which greatly facilitates the handling of thick materials.
- Guaranteed stitching quality
Pneumatic control offers fast response and precise action. In reverse stitching, the pneumatic mechanism makes the back‑tacking movement quicker and more accurate, significantly improving seam quality. For presser‑foot pressure, the built‑in regulator allows real‑time visual adjustment-whether for elastic fabrics or very thin materials, the optimal pressure can be set instantly, effectively preventing fabric puckering or damage. Some machines also feature a CAF (Constant Air Pressure) system that maintains uniform, minimal presser‑foot pressure for delicate work.
- Clean, environmentally friendly, and easy maintenance
Pneumatic systems use compressed air as a clean energy source, making them energy‑efficient and eco‑friendly. Compared with solenoid‑based designs, pneumatic components have lower failure rates and are easier to service. The integrated design of pneumatic control modules also simplifies installation and maintenance.
3. Typical Applications: From Heavy‑Duty Materials to Specialized Sewing
Pneumatic lifting and reverse stitching are now widely used across various industrial sewing scenarios:
- Heavy‑duty and extra‑heavy materials: For sewing jumbo bags, slings, seat belts, tents, leather, etc., the high lifting force and stable reverse control provided by pneumatic systems are essential. For instance, the FGB6800HL pneumatic jumbo‑bag sewing machine offers a stitch length of 0–13 mm and a presser‑foot lift of 14–22 mm, specifically designed for extra‑heavy materials.
- Specialized sewing equipment: In extra‑long, extra‑heavy zig‑zag machines, pneumatic lifting, pneumatic reverse, and pneumatic raising of the feed roller are combined to efficiently sew large tents, sails, and other bulky items. Post‑bed compound‑feed machines use pneumatic control to achieve precise stitching on complex three‑dimensional parts.
- Automated production lines: In modern intelligent sewing cells, pneumatic lifting and reverse stitching are integrated with automatic trimming, automatic positioning, and electronic knee control. Digital servo systems allow free programming of forward and reverse stitch counts, enabling continuous sewing of multiple stitch patterns. Yamato's ABT30 automatic back‑tacking device takes it a step further by automating the entire back‑tacking process-from cutting the thread loop to using an air nozzle to hold the loop, all done automatically.
4. Technology Trends: Smart and Integrated Directions
Currently, pneumatic lifting and reverse stitching technologies are evolving along these lines:
- Diversified drive methods: Besides pure pneumatic solutions, stepper‑motor drives and single‑motor multi‑action linkages are also emerging. A single motor can now perform reverse stitching, presser‑foot lifting, and thread trimming, significantly reducing manufacturing costs.
- Digital control: Presser‑foot lift height can be digitally adjusted, and reverse stitch counts can be precisely programmed. Digital servo control systems make every sewing action more accurate and controllable.
- Integrated functions: Lifting and reverse stitching are being deeply integrated with other automated features. For example, the presser foot automatically lifts at the end of a seam, and the feed roller can be linked to reverse stitching for seamless coordination.
- Pneumatic presser foot lifting and reverse stitching represent a critical step in the evolution of industrial sewing machines from manual‑assisted to automated‑intelligent equipment. They not only resolve the traditional pain points of low efficiency and high physical labor but also provide reliable assurance for high‑quality seams. For sewing enterprises, choosing machines equipped with these pneumatic functions means finding a better balance between efficiency, quality, and labor costs. As technology continues to advance, pneumatic control will undoubtedly play an even more profound role in the industrial sewing field.
