Direct-driven Walking Foot Cylinder Bed Sewing Machines 669 Series

• High speed walking cylinder bed sewing machines.
• The small cylinder arm with the diameter 50mm.
• Powerful integrated direct-driven control and motor.
• Its max.foot lift can up to 20mm.
• 3 sub-classes models with the different function as the option.

Direct-driven walking foot cylinder bed sewing machines 669 series are the 1-needle, high speed, compound feed with walking foot, cylinder bed, lockstitch sewing machines. With the large horizontal rotary hook and bobbin, this series machines adopt the triple feed with the walking foot(the alternative foot movement amount can up to 9mm), which make sures the machine's climbing capability for the multi-layers products), max.foot lift can up to 20mm by knee, 50mm diameter slim cylinder arm, powerful integrated built-in control, motor and built-in panel(machines parts same as Durkopp Adler 669 series).

These 669 cylinder arm leather sewing machines includes 3 sub-classes models, GA-669D-110026 is the basic direct-driven model with the top and bottom needle position function and built-in panel(icon type), GA-669D-180112 is the direct-driven version with the full automatic function, including the auto thread trimmer, auto foot lift, auto reverse and built-in panel(icon type), but only come with the single stitch dial and single top dial for the alternative foot lift adjustment, GA-669-180312 is the full function automatic machine with the powerful motor under the table top, which includes the automatic thread trimmer, auto foot lift, auto reverse, built-in touchable panel, two stitch dials for free interchange between the short and long stitches, two tops dials for the alternative feet adjustment and second tension.

Compound feed with walking foot cylinder bed sewing machines 669 series machines mainly designed for sewing the medium and heavy duty materials, such as tubular leather products, car rests, wallets etc. The material guide(option) added allows the edge from 1mm to the right of the needle, the perfect binding operation available with the moving binder(option).

Machine Details

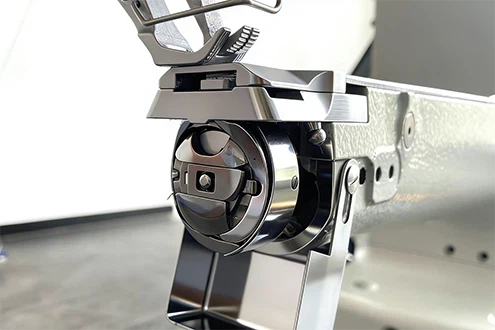

Hook&Bobbin Case&Bobbin

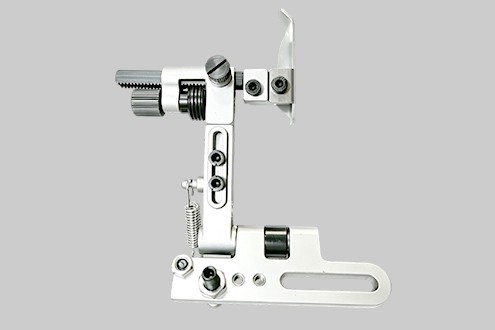

Material Guide
